Kia Forte: Body Electrical System / Lighting System

Kia Forte 2019-2020 (BD) Service Manual / Body Electrical System / Lighting System

Specifications
Specification

Item
Type
Watt
Front
Headlamp
Halogen type
Low
9005HL
60
High
H7LL
55
Position lamp
LED
0.9
Daytime Running Light (DRL)
LED
9
LED type
Low/High
LED
36
Position lamp
LED
0.9
Daytime Running Light (DRL)
LED
9
Turn signal lamp
PY21W
21
Fog lamp
HB4
51
Side repeater lamp
WY5W
5
DRL / Position lamp
P21/5W
5
Rear
Rear combinationlamp
Bulb type
Tail lamp
4DR : P21/5W
5DR : W5W
5
Tail/Stop lamp
P21/5W
5
Rear fog lamp
P21W
21
LED type
Tail lamp
LED
0.5
Tail/Stop lamp
LED
0.5
Stop lamp
LED
0.5
Turn signal lamp
PY21W
21
Back up lamp
W16W
16
High mounted stop lamp
Bulb type
P21W
21
LED type
LED
0.5
License plate lamp
W5W L/L
5
Interior
Map lamp
WEDGE
10
Room lamp
FESTOON
10
Luggage lamp
FESTOON
5
Personal lamp
FESTOON
5

Components and components location

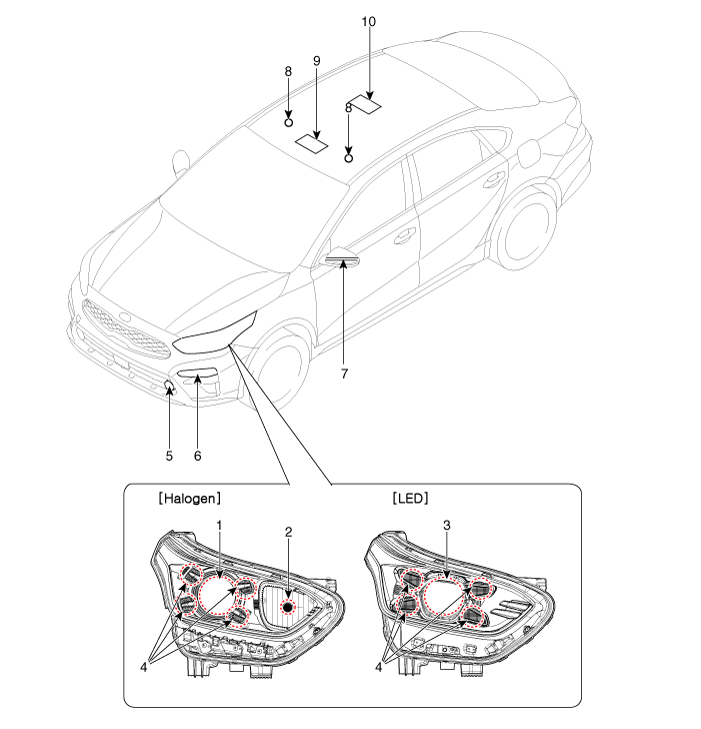

Component Location

1. Low beam
2. High beam
3 Low/High beam
4. Daytime Running Light (DRL) / Position lamp
5. Fog lamp/Daytime Running Light (DRL) / Position lamp
6. Turn signal lamp (Front)
7. Turn signal lamp (Side)
8. Vanity lamp
9. Map lamp
10. Room lamp

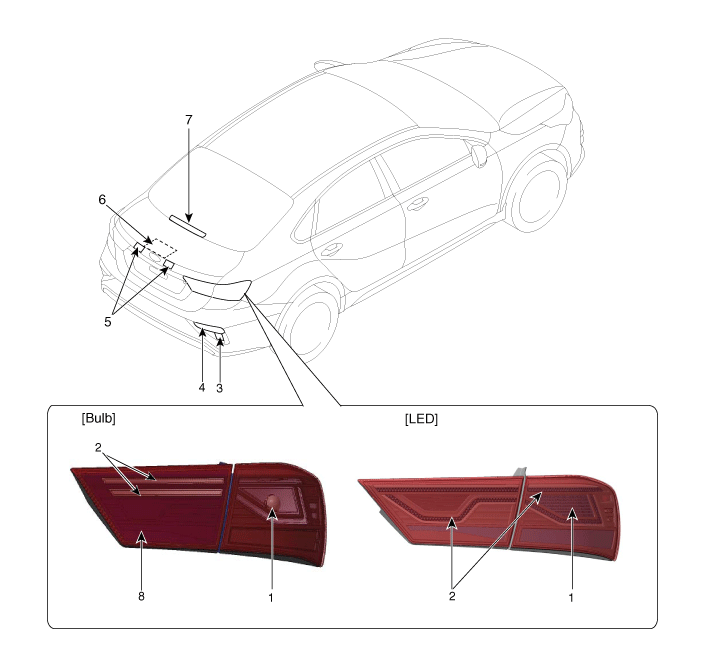

[4DR]

1. Stop / Tail lamp
2. Tail lamp
3. Back up lamp
4.Turn signal lamp
5. License lamp
6. Luggage lamp
7. High mounted stop lamp
8. Fog lamp

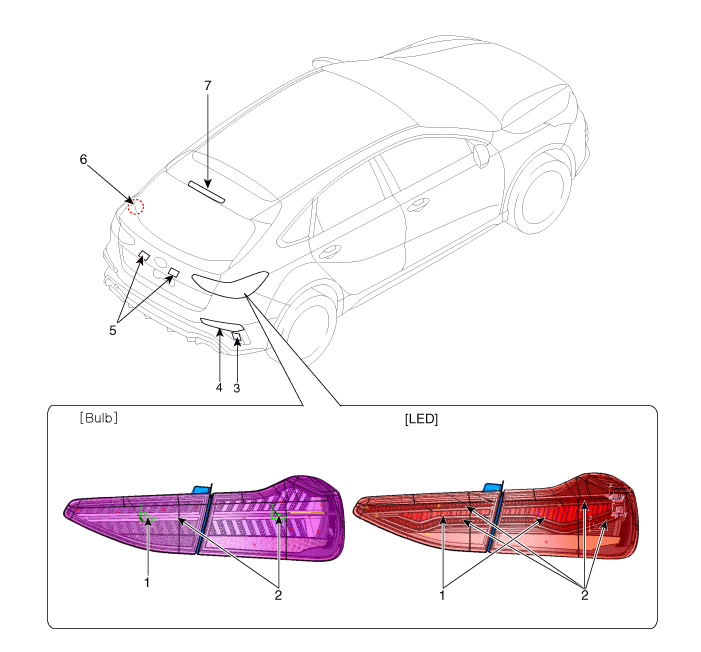

[5DR]

1. Stop lamp
2. Tail lamp
3. Back up lamp
4.Turn signal lamp
5. License lamp
6. Luggage lamp
7. High mounted stop lamp
8. Fog lamp

Repair procedures
Adjustment

Head Lamp Aiming



The headlamps should be aimed with the proper beam-setting equipment, and in accordance with the equipment manufacturer's instructions.

If there are any regulations pertinent to the aiming of headlamps in the area where the vehicle is to be used, adjust so as to meet those requirements.

If beam-setting equipment is not available, proceed as follows :

1.

Inflate the tires to the specified pressure and remove any loads from the vehicle except the driver, spare tire, and tools.

2.

The vehicle should be placed on a flat floor.

3.

Draw vertical lines (passing through respective headlamp centers) and a horizontal line (passing through center of headlamps) on the screen.

4.

If headlamp leveling device is equipped, adjust the headlamp leveling device switch with 0 positions.

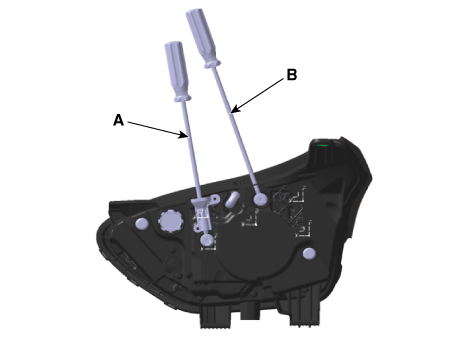

5.

With the headlamps and battery in normal condition, aim the headlamps so the brightest portion falls on the horizontal and vertical lines.

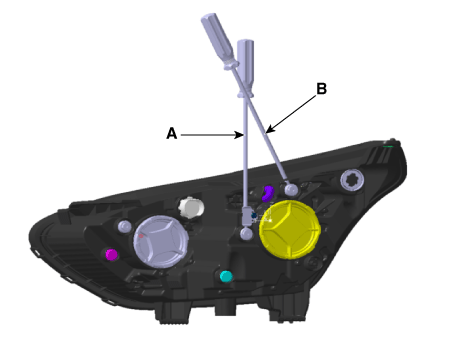

A : Vertical

B : Horizontal

[Halogen]

[LED]

Fog Lamp Aiming



The front fog lamps should be aimed in the same manner as the headlamp aiming.

1.

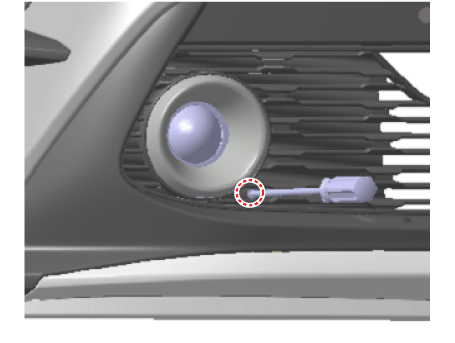

With the battery normal condition, aim the front fog lamps by turning the adjusting screw with a driver.

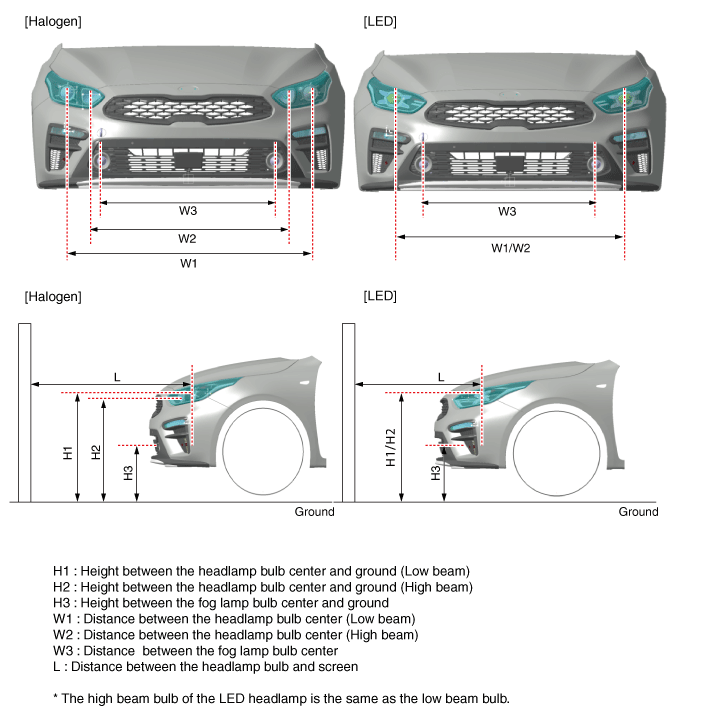

Headlamp and Fog Lamp Aiming Point

Headlamp

[Australia (4DR)/Australia, Europe (5DR)]

mm (in.)

Type
Vehicle condition
H1
H2
W1
W2
Halogen
Without driver
715.5 (28.16)
691.3 (27.21)
1376 (54.17)
1104 (43.46)
With driver
710.5 (27.97)
686.3 (27.01)
LED
Without driver
710.5 (27.97)
1314.4 (51.74)
With driver
705.5 (27.77)

[General, Middle East, Europe (4DR)/General, Europe (5DR)]

mm (in.)

Type
Vehicle condition
H1
H2
W1
W2
Halogen
Without driver
725.5 (28.56)
701.3 (27.61)
1376 (54.17)
1104 (43.46)
With driver
720.5 (28.36)
696.3 (27.41)
LED
Without driver
720.5 (28.36)
1314.4 (51.74)
With driver
715.5 (28.16)

[Mexico, Central & South America, Russia, India, Brazil (4DR)]

mm (in.)

Type
Vehicle condition
H1
H2
W1
W2
Halogen
Without driver
735.5 (28.95)
711.3 (28.00)
1376 (54.17)
1104 (43.46)
With driver
730.5 (28.75)
706.3 (27.80
LED
Without driver
730.5 (28.75)
1314.4 (51.74)
With driver
725.5 (28.56)

1.

If headlamp leveling device is equipped, adjust the headlamp leveling device switch with 0 positions.

2.

Turn the low beam on without driver aboard.

3.

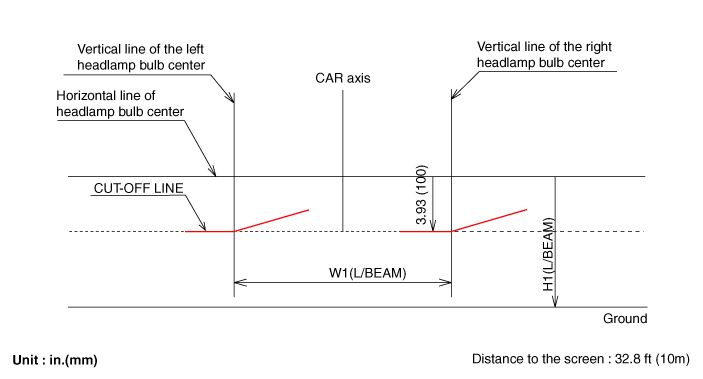

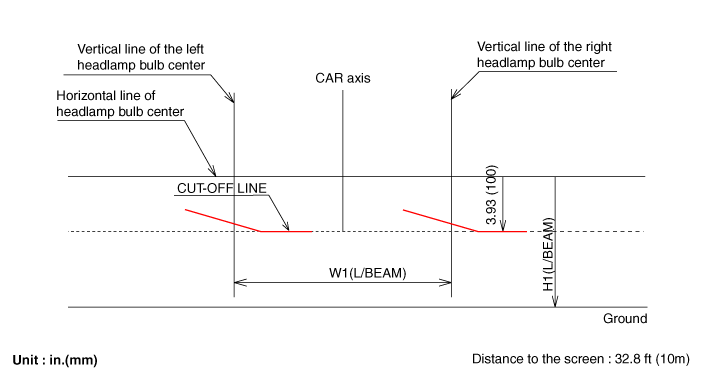

The low beam cut-off line should be projected as shown in the picture.

[LHD]

[RHD]

4.

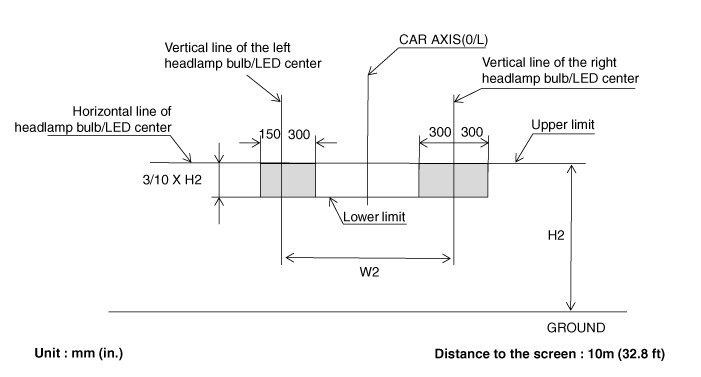

Turn the high beam on without driver aboard.

5.

The hot zone should be projected in the allowable range shown in the picture.

Fog lamp

mm (in.)

Vehicle condition
H3
W3
Without driver
329.5 (12.97)
981.8 (38.65)
With driver
324.5 (12.77)

1.

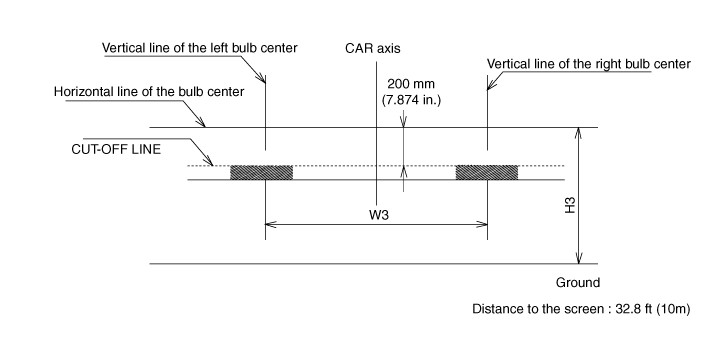

Turn the front fog lamp on without the driver aboard.

2.

The cut-off line should be projected in the allowable range (shaded region).
