Kia Forte: Lighting System / Luggage Room Lamp

Kia Forte 2019-2024 (BD) Service Manual / Body Electrical System / Lighting System / Luggage Room Lamp

Repair procedures
Removal
1.

Disconnect the negative (-) battery terminal.

2.

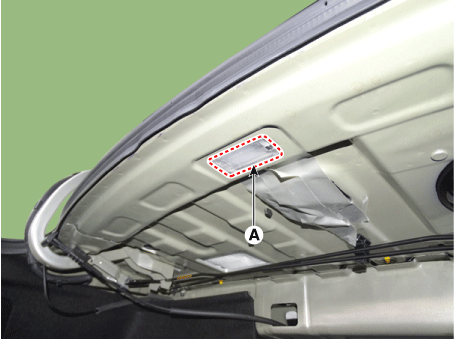

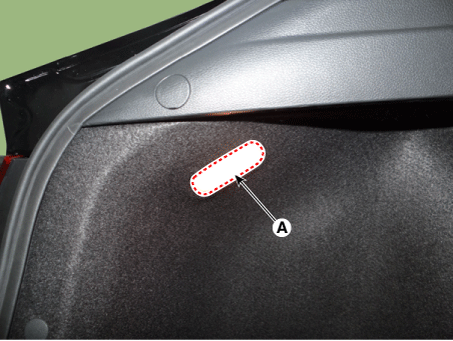

Remove the luggage room lamp (A) by using a screwdriver or remover.

[4DR]

[5DR]

3.

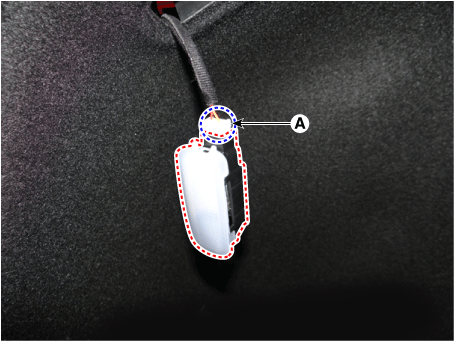

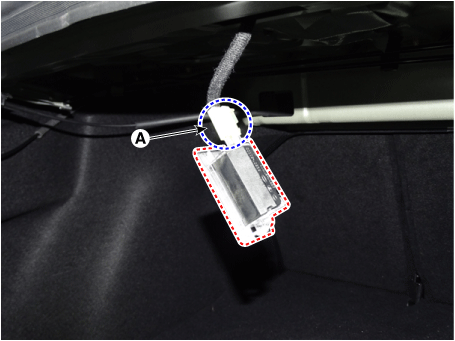

Disconnect the luggage room lamp connector (A).

[4DR]

[5DR]

Installation
1.

Install in the reverse order of removal.
