Repair procedures
Removal

Front Turn Signal Lamp

1.

Disconnect the negative (-) battery terminal.

2.

Remove the front bumper assembly.

(Refer to Body - "Front Bumper Assembly")

3.

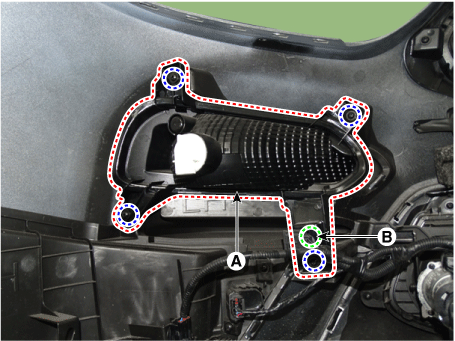

Remove the front turn signal lamp (A) by loosening the screws after removing the wiring fixing clip (B).

Rear Turn Signal Lamp

1.

Disconnect the negative (-) battery terminal.

2.

Remove the rear bumper assembly.

(Refer to Body - "Rear Bumper Assembly")

3.

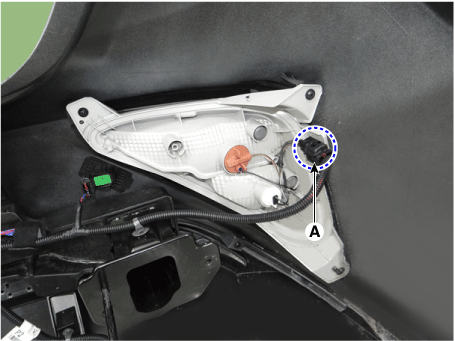

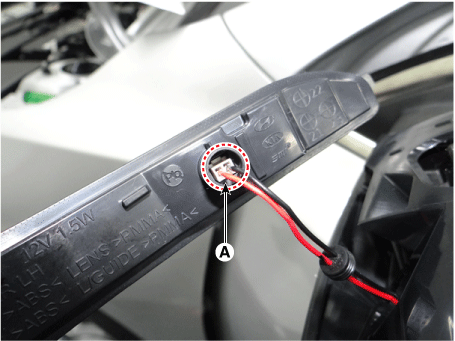

Disconnect the rear turn signal lamp connector (A).

4.

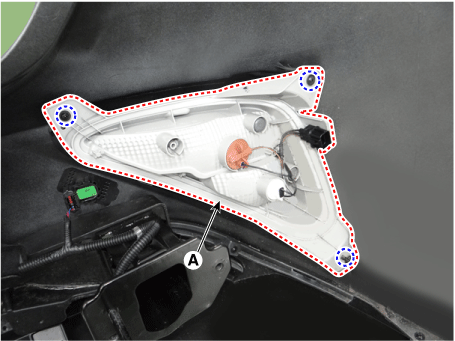

Remove the front turn signal lamp (A) by loosening the screws.

Door Mirror Turn Signal Lamp

1.

Disconnect the negative (-) battery terminal.

2.

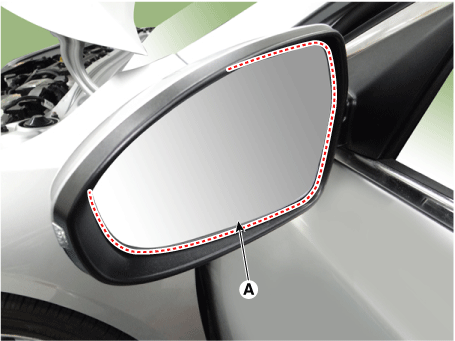

Remove the mirror (A).



Be careful not to damage mirror and mirror housing during removing process.

Apply force around the center of mirror when removing the mirror.

Be careful not to damage mirror fixing clips.

3.

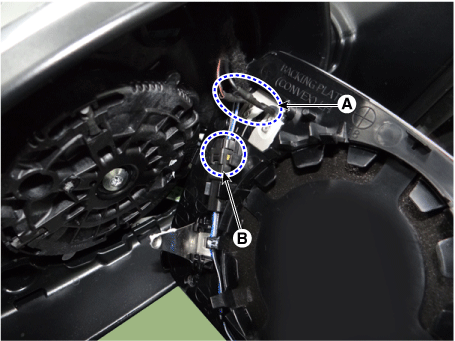

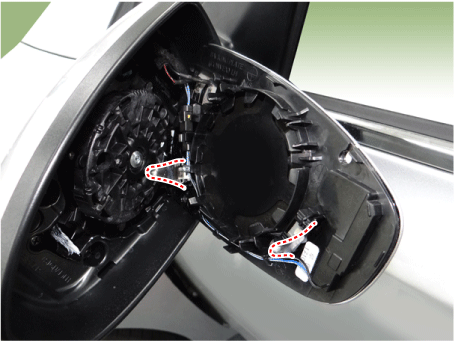

Disconnect the mirror heater connector (A) and BCW indicator connector (B).

4.

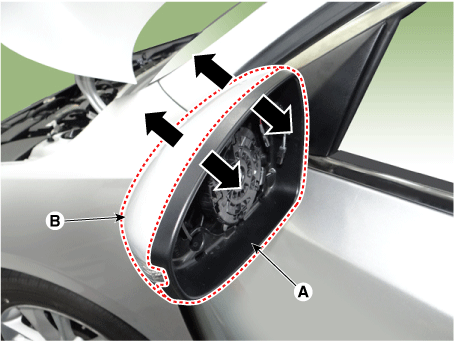

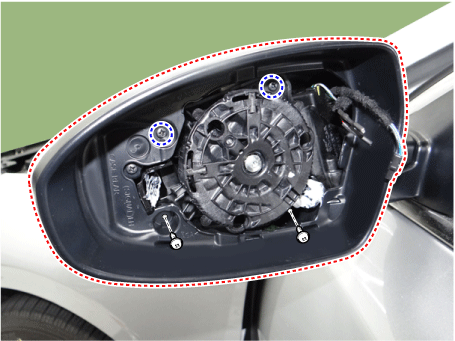

Remove the door mirror housing (A) and door mirror scalp (B) after loosening the screws.

5.

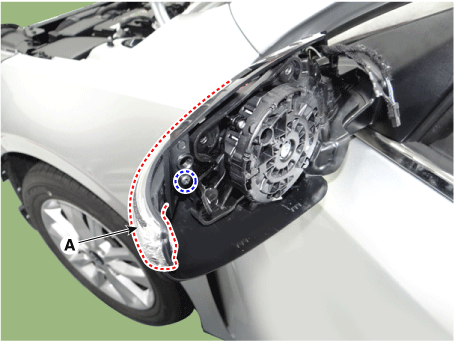

Remove the door mirror turn signal lamp (A) after loosening the screw.

6.

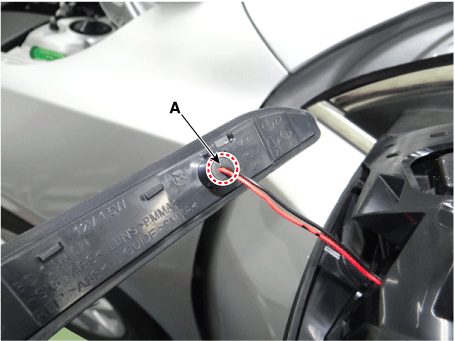

Remove the rubber packing (A).

7.

Disconnect the connector (A).

Installation
1.

Install in the reverse order of removal.

Replacement

Front Turn Signal Lamp Bulb

1.

Disconnect the negative (-) battery terminal.

2.

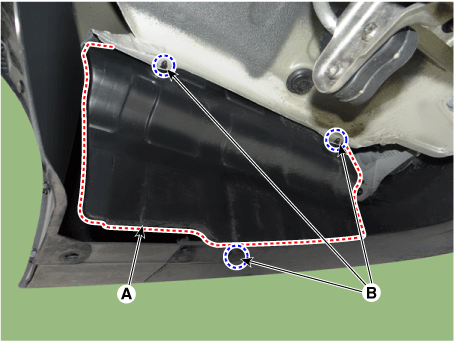

Remove the under cover.

Nu 2.0 MPI (Refer to Engine Mechanical System - "Engine Room Under Cover")

Gamma 1.6 MPI (Refer to Engine Mechanical System - "Engine Room Under Cover")

3.

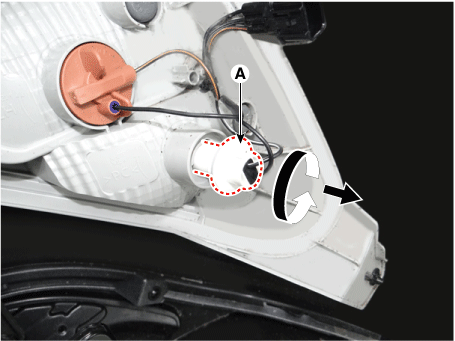

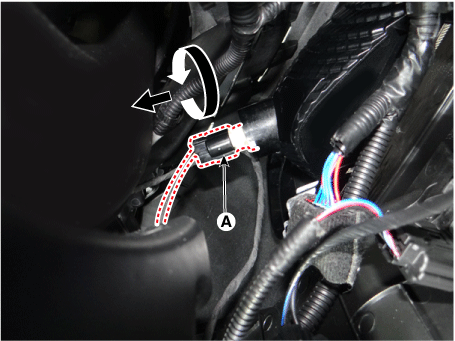

Remove the front turn signal lamp socket (A) by rotating in the counterclockwise.

4.

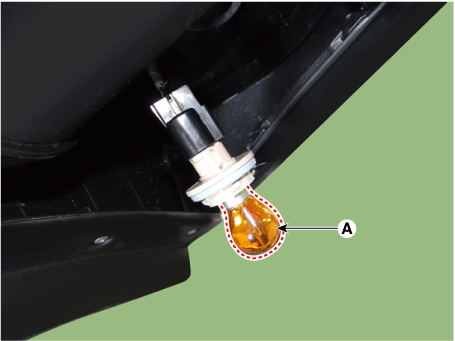

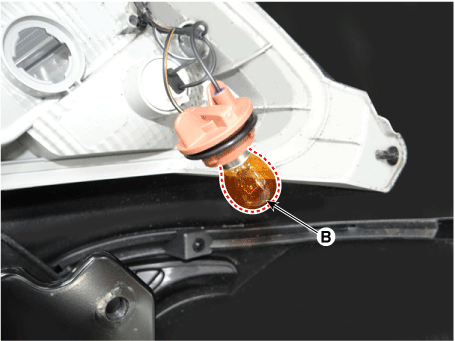

Remove the bulb (A) from the socket.

5.

Install in the reverse of the removal.

Rear Turn Signal Lamp/Back up Lamp Bulb

1.

Disconnect the negative (-) battery terminal.

2.

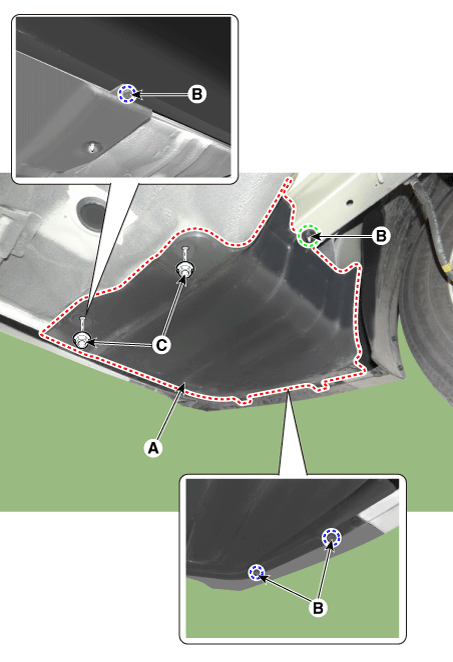

Rear bumper guard (A).

B : Clip

C : Nut

[LH]

[RH]

3.

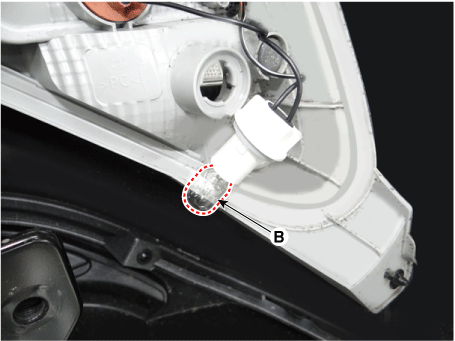

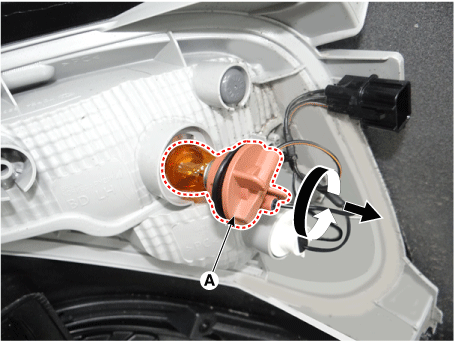

Remove socket (A) by rotating in the counterclockwise and then remove the bulb (B) from the socket.

[Back up lamp]

Rear Turn Signal Lamp

4.

Install in the reverse of the removal.
