Kia Forte: Fuel Delivery System / Fuel Tank

Kia Forte 2019-2025 (BD) Service Manual / Engine Control / Fuel System / Fuel Delivery System / Fuel Tank

Repair procedures
Removal and Installation
1.

Release the residual pressure in the fuel line.

(Refer the Fuel Delivery system - "Release Residual Pressure in Fuel Line")

2.

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

3.

Remove the rear seat cushion.

(Refer to Body - "Rear Seat assembly")

4.

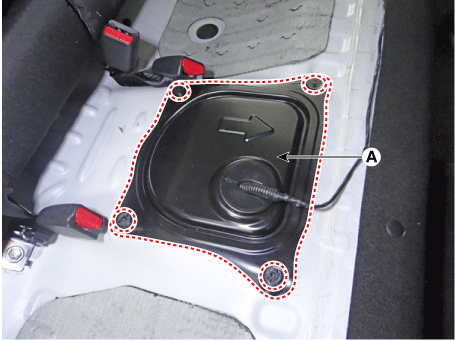

Remove the fuel pump service cover (A).

5.

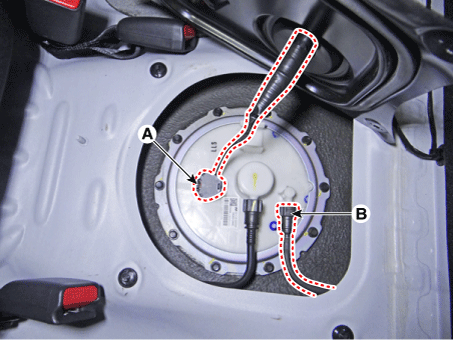

Disconnect the fuel pump connector (A).

6.

Disconnect the fuel feed quick-connector (B).

7.

Remove the center muffler assembly.

(Refer to Engine Mechanical System - "Muffler")

8.

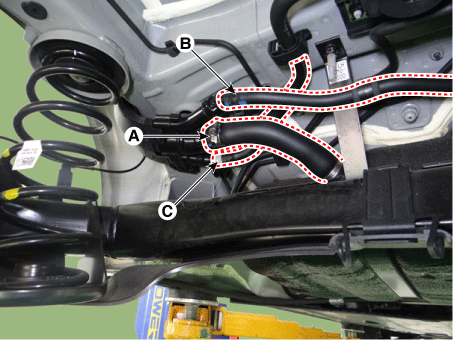

Disconnect the fuel filler hose (A), the leveling hose (B) and the ventilation hose (C).

9.

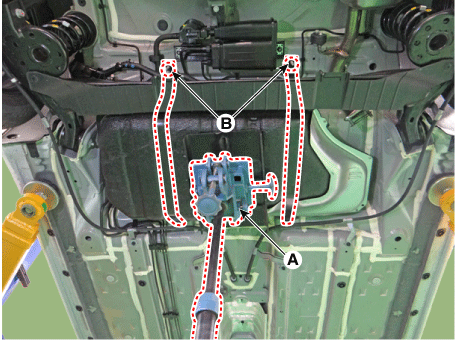

Support the fuel tank on a jack (A)

10.

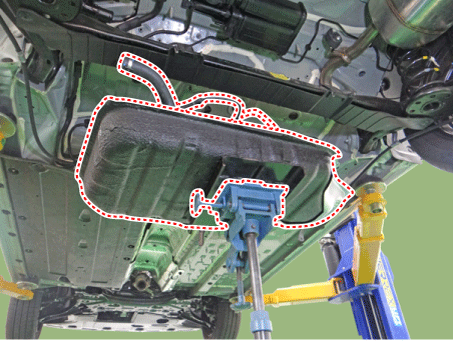

Remove the fuel tank mounting nuts (B), and then remove the fuel tank.

Fuel tank band mounting nut :

39.2 - 54.0 N·m (4.0 - 5.5 kgf·m, 28.9 - 39.8 lb·ft)

11.

Install in the reverse order of removal.
