Repair procedures
Removal


When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

1.

Disconnect the negative (-) battery terminal.

2.

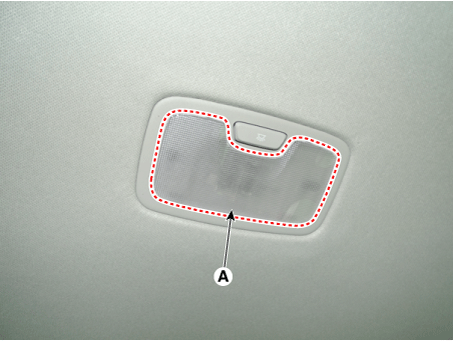

Remove the room lamp lens (A) by using a screwdriver or remover.

3.

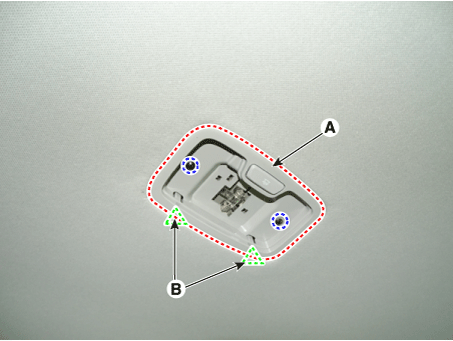

Remove the room lamp (A) after loosening the mounting screws.



When removing the room lamp, be careful of the direction in which the tool is inserted (B).

When inserting the tool in the opposite direction, take caution as the room lamp may be damaged.

4.

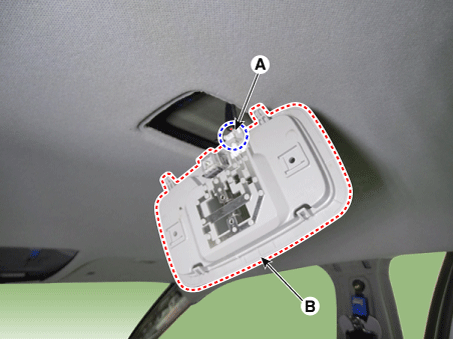

Remove the room lamp assembly (B) by disconnecting the connector (A).

Installation
1.

Install in the reverse order of removal.

Replacement
1.

Remove the room lamp lens (A) by using a screwdriver or remover.

2.

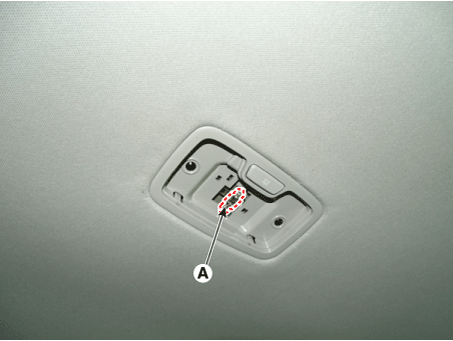

Replace the bulb (A).

3.

Install in the reverse of the removal.
