Kia Forte: Lighting System / Vanity Lamp

Kia Forte 2019-2023 (BD) Service Manual / Body Electrical System / Lighting System / Vanity Lamp

Repair procedures
Removal
1.

Disconnect the negative (-) battery terminal.

2.

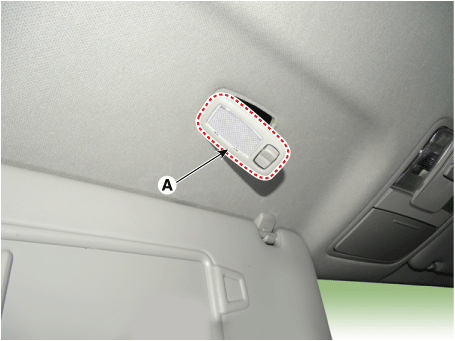

Remove the room lamp lens (A) by using a screwdriver or remover.

3.

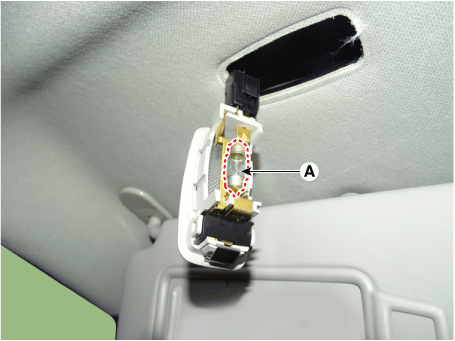

Disconnect the vanity lamp connector (A).

Installation
1.

Install in the reverse order of removal.

Replacement

Bulb

1.

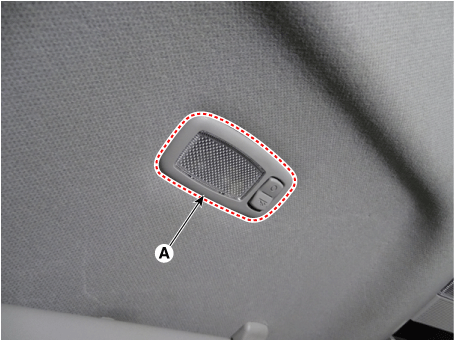

Remove the room lamp lens (A) by using a screwdriver or remover.

2.

Replace the bulb (A) by pressing the fixing clip.
