Kia Forte: Lighting System / Overhead Console Lamp

Kia Forte 2019-2021 (BD) Service Manual / Body Electrical System / Lighting System / Overhead Console Lamp

Repair procedures
Inspection
1.

Remove the overhead console lamp.

(Refer to Lighting System - "Overhead Console Lamp")

2.

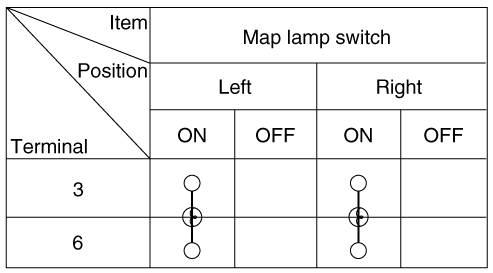

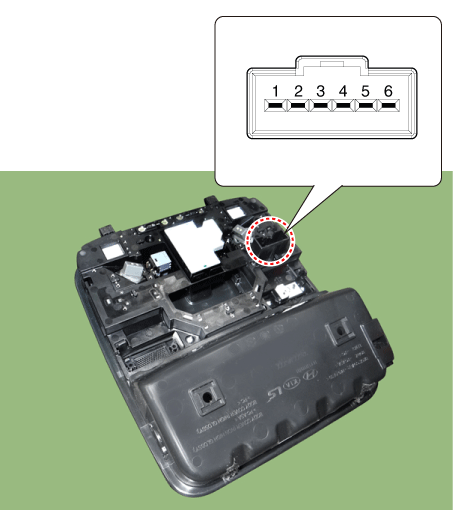

Check for continuity between terminals.

Pin
Function
1
Battery (+)
2
Door (-)
3
Room signal
4
-
5
-
6
Ground

Removal
1.

Disconnect the negative (-) battery terminal.

2.

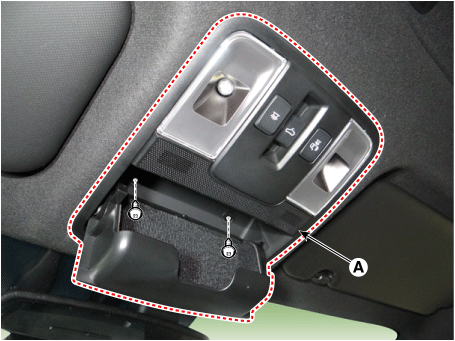

Remove the overhead console lamp (A) after loosening the screws.

3.

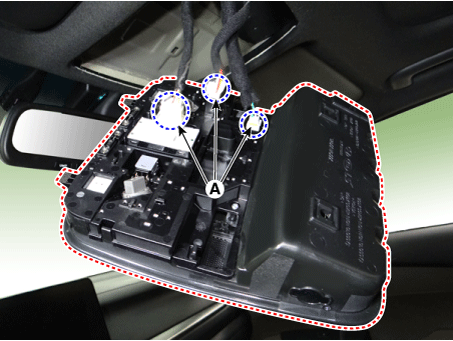

Disconnect the connectors (A).

Installation
1.

Install in the reverse order of removal.
