Kia Forte: Cooling System / Reservoir Tank

Kia Forte 2019-2024 (BD) Service Manual / Engine Mechanical System / Cooling System / Reservoir Tank

Repair procedures

Removal and Installation

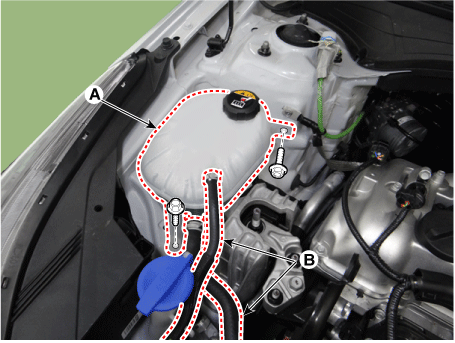

1.	Disconnect the reservoir hose (A).

Remove the reservoir tank (B).

Tightening torque :

7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)

3.	Install in the reverse order of removal.
