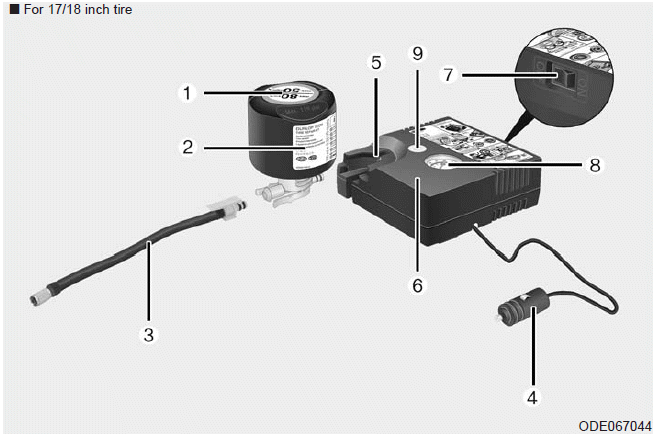

Kia Forte: If you have a flat tire (With Tire Mobility Kit) / Components of the Tire Mobility Kit (TMK)

1. Speed restriction label
2. Sealant bottle and label with
speed restriction
3. Filling sealant and air hose from
sealant bottle to wheel
4. Connectors and cable for the
power outlet direct connection
5. Holder for the sealant bottle
6. Compressor
7. On/off switch
8. Pressure gauge for displaying the
tire inflation pressure
9. Tire Pressure Control Release
Button
Connectors and cable are stored in
the compressor housing.
WARNING - Expired
sealant
Do not use the Tire sealant after
the sealant has expired (i.e.
after the expiration date on the
sealant container). This can
increase the risk of tire failure.
WARNING - Sealant
- Keep out of reach of children.
- Avoid contact with eyes.
- Do not swallow.
✽ NOTICE
The sealant container and insert
hose (3) cannot be reused.
