Kia Forte: If you have a flat tire (With Tire Mobility Kit) / Components of the Tire Mobility Kit (TMK)

Kia Forte 2019-2020 (BD) Owners Manual / What to do in an emergency / If you have a flat tire (With Tire Mobility Kit) / Components of the Tire Mobility Kit (TMK)

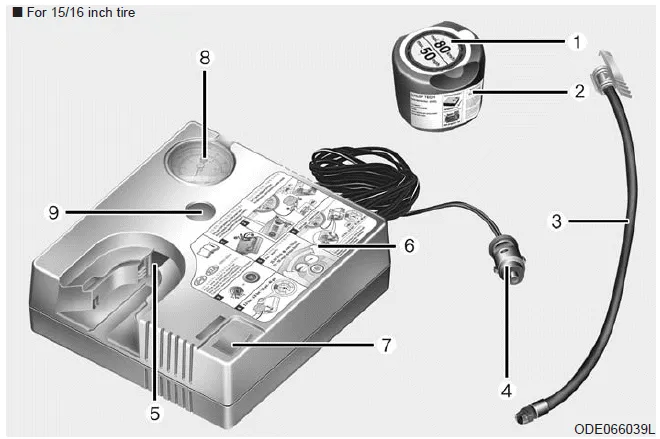

1. Speed restriction label

2. Sealant bottle and label with speed restriction

3. Filling sealant and air hose from sealant bottle to wheel

4. Connectors and cable for the power outlet direct connection

5. Holder for the sealant bottle

6. Compressor

7. On/off switch

8. Pressure gauge for displaying the tire inflation pressure

9. Tire Pressure Control Release Button

Connectors and cable are stored in the compressor housing.

WARNING - Expired sealant

Do not use the Tire sealant after the sealant has expired (i.e. after the expiration date on the sealant container). This can increase the risk of tire failure.

WARNING - Sealant

✽ NOTICE

The sealant container and insert hose (3) cannot be reused.
