Kia Forte: Windows / Window opening and closing, Auto down window

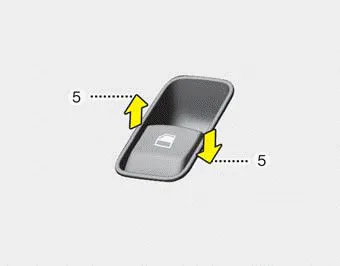

Window opening and closing

To open or close a window, press
down or pull up the front portion of
the corresponding switch to the first
detent position (5).

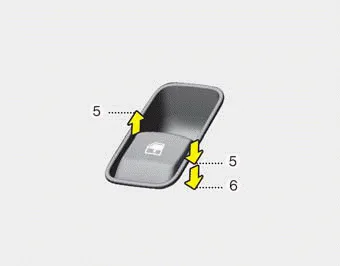

Auto down window (if equipped)
(Driver’s window)

Pressing the power window switch
momentarily to the second detent
position (6) completely lowers the
driver’s window even when the
switch is released. To stop the window
at the desired position while the
window is in operation, briefly pull up
the switch to the opposite direction of
the window movement.
(1) Driver’s door power window
switch
(2) Front passenger’s door power
window switch
(3) Rear door (left) power window
switch
(4) Rear door (right) power window
switch
(5) Window ...
Pressing or pulling up the power window
switch momentarily to the second
detent position (6) completely
lowers or lifts the window even when
the switch is released. To stop the
window at t ...
