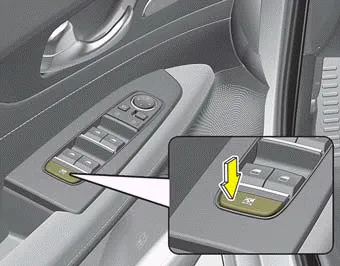

The driver can disable the power window switches on the rear passengers' doors by pressing the power window lock switch to the lock position (pressed).
When the power window lock switch is pressed:
CAUTION - Opening/closing Window
To prevent possible damage to the power window system, do not open or close two windows or more at the same time. This will also ensure the longevity of the fuse.
WARNING - Power windows
Always double check to make sure all arms, hands, head and other obstructions are safely out of the way before closing a window.
Pressing or pulling up the power window switch momentarily to the second detent position (6) completely lowers or lifts the window even when the switch is released.
Opening the hood 1. Pull the release lever to unlatch the hood. The hood should pop open slightly. Open the hood after turning off the engine on a flat surface, shifting the shift lever to the P (Park) position for Dual clutch transmission/Intelligent Variable Transmission and to the 1st (First) gear or R (Reverse) for Manual Transmission, and setting the parking brake.
1. Turn the ignition switch and all other switches off. 2. Open the fuse panel cover. If the switch is located in the “OFF” position, a caution indicator will be displayed in the cluster. To identify the location of a specific fuse, please refer to the inside of the fuse panel cover and the description list in this section.
1. Remove the lamp assembly from the vehicle by prying the lens and pulling the assembly out. 2. Disconnect the bulb electrical connector. 3. Separate the socket and the lens parts by turning the socket counterclockwise until the tabs on the socket align with the slots on the lens part.
