Kia Forte: Lighting System / Front Fog Lamps

Kia Forte 2019-2022 (BD) Service Manual / Body Electrical System / Lighting System / Front Fog Lamps

Repair procedures
Removal
1.

Disconnect the negative (-) battery terminal.

2.

Remove the front bumper assembly.

(Refer to Body - "Front Bumper assembly")

3.

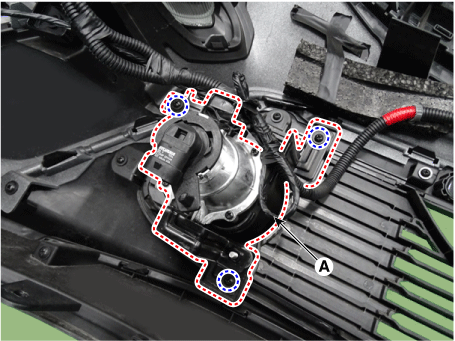

Remove the front fog lamp (A) by loosening the screws.

Installation
1.

Install in the reverse order of removal.

Replacement
1.

Disconnect the negative (-) battery terminal.

2.

Remove the under cover.

Nu 2.0 MPI (Refer to Engine Mechanical System - "Engine Room Under Cover")

Gamma 1.6 MPI (Refer to Engine Mechanical System - "Engine Room Under Cover")

3.

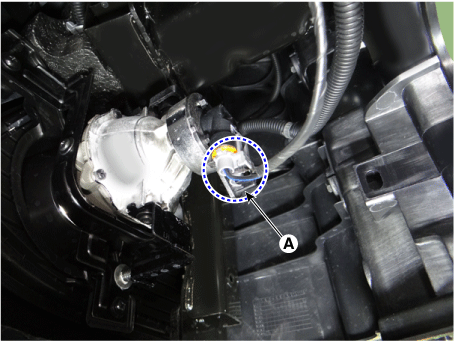

Disconnect the fog lamp connector (A).

4.

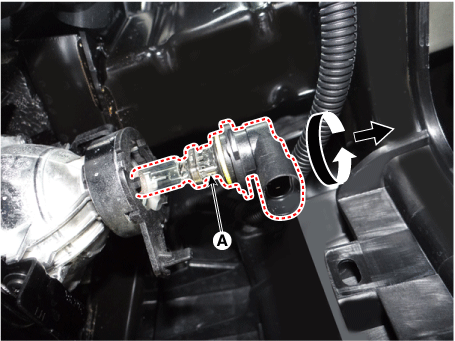

Replace the bulb after removing the fog lamp socket (A) by rotating it in the counterclockwise.

5.

Install in the reverse of the removal.
