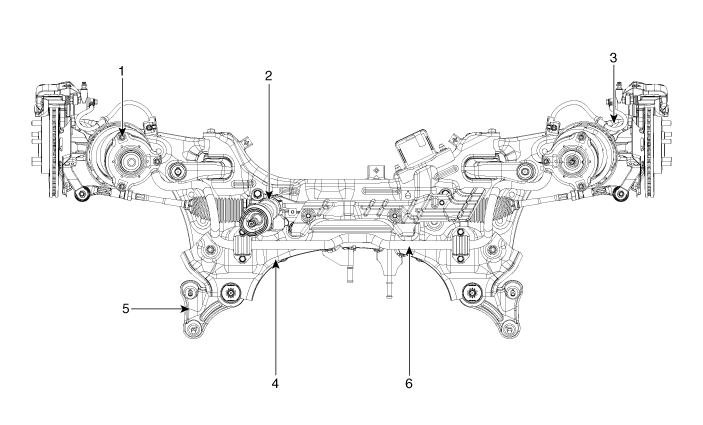

Components and components location
Components

1. Strut assembly
2. Steering gear box
3. Lower arm
4. Sub frame
5. Sub frame stay
6. Stabilizer bar

Suspension System
Service data Service Data Front Suspension Item Specification Suspension type Macpherson Strut Shock absorber t ...

Front Strut Assembly
Components and components location Components 1. Strut assembly 2. Spring lower pad 3. Coil spring 4. Dust cover 5. Bumper stopper 6. Spring upper pa ...
