Kia Forte: Front Suspension System / Sub Frame
Repair procedures
| 1. |

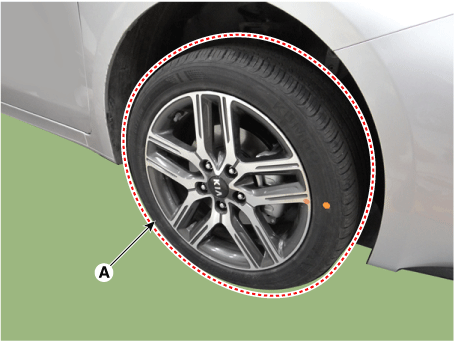

Remove the front wheel and tire (A).
|
Tightening torque :
107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94.0 lb·ft)
|
|
Be careful not to damage to the hub bolts when removing the front
wheel and tire.
|
|
| 2. |

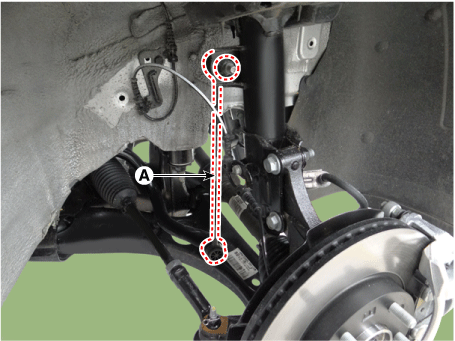

Loosen the nut and then disconnect the stabilizer bar link (A).
|
Tightening torque:
98.1 - 117.7 N·m (10.0 - 12.0 kgf·m, 72.3 - 86.8 lb·ft)
|
| •
|
When loosening the nut, fix the outer hexagon of stabilizer
bar link.
|
| •
|
Be careful not to damage the stabilizer link boots.
|
|
|
| 3. |

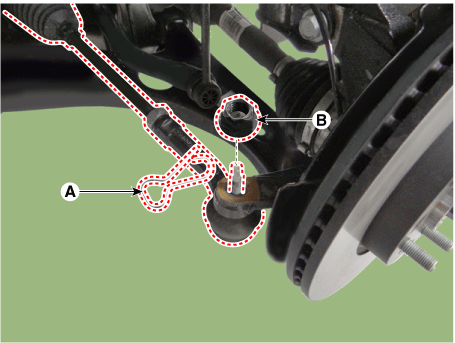

Disconnect the tie rod end ball joint from the knuckle by using the SST
(09568-1S100).
| (1) |
Remove the split pin (A).
|
| (2) |
Remove the castle nut (B).
|
Tightening torque:
34.3 - 44.1 N·m (3.5 - 4.5 kgf·m, 25.3 - 32.5 lb·ft)
|
|
| (3) |

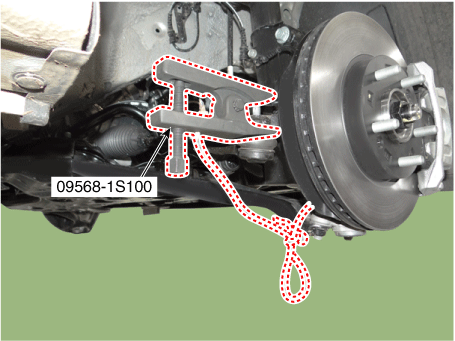

Disconnect the tie rod end ball joint from the knuckle by using
the SST (09568-1S100).
|
|
| 4. |

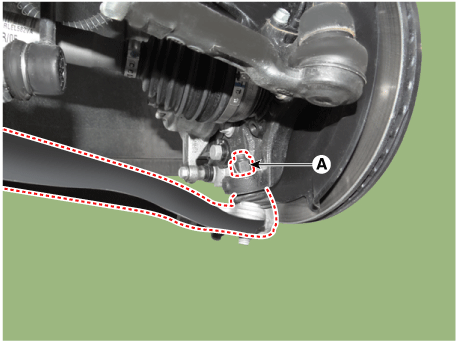

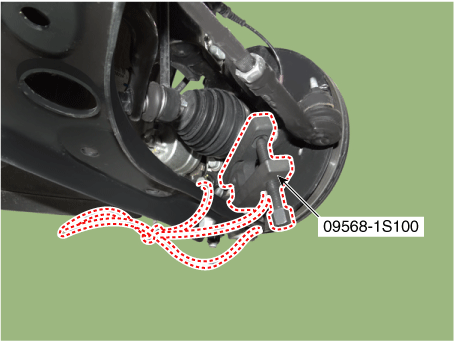

Detach the front lower arm from the front knuckle using the SST (09568-1S100).
| (1) |
Remove the lower arm nut (A).
|
Tightening torque:
58.8 - 70.6 N·m (6.0 - 7.2 kgf·m, 43.4 - 52.1 lb·ft)
|
|
| (2) |
Detach the front lower arm from the front knuckle using the SST
(09568-1S100).
|
• |
When using SST, be sure not to damage the dust
cover of lower arm ball joint.
|
|
• |
Keep SST tied to the car because there is a risk
of injury by dropping the SST during removing the
lower arm ball joint.
|
|
• |
The peripheral parts may be damaged when removing
the lower arm ball joint with a general tool such
as lever, so be sure to use SST.
|
|
|
|
| 5. |

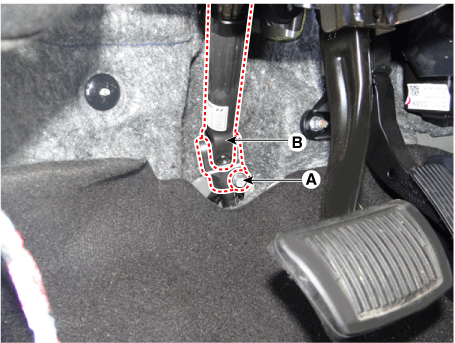

Loosen the bolt (A) and then disconnect the universal joint (B).
|
Tightening torque:
32.4 - 37.3 N·m (3.3 - 3.8 kgf·m, 23.9 - 27.5 lb·ft)
|
| •
|
Lock the steering wheel in the straight ahead position
to prevent the damage of the clock spring inner cable.
|
| •
|

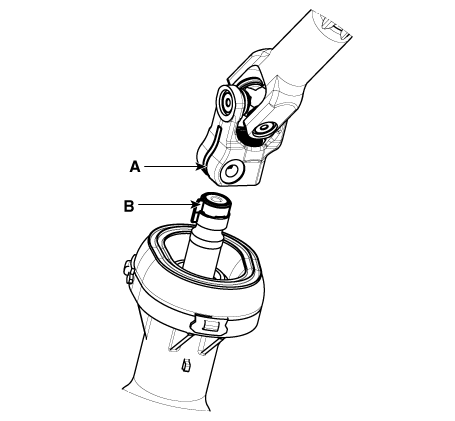

When assembling, insert the shark pin (B) into the universal
joint yoke slot (A) as the below illustration.
|
|
|
| 6. |

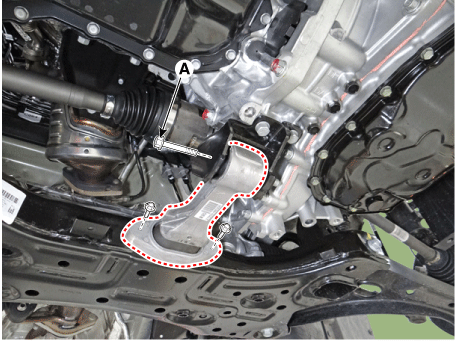

Remove the roll rod bracket mounting bolt (A).
|
Tightening torque:
107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94.0 lb·ft)
|
|
| 7. |

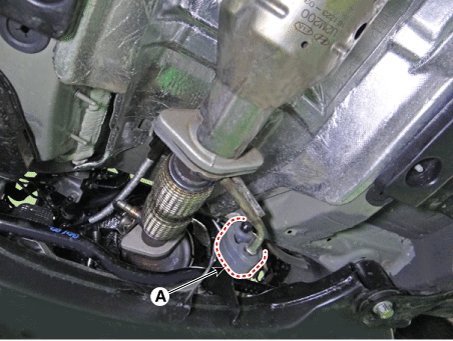

Disconnect the front muffler rubber hanger (A).
|
| 8. |

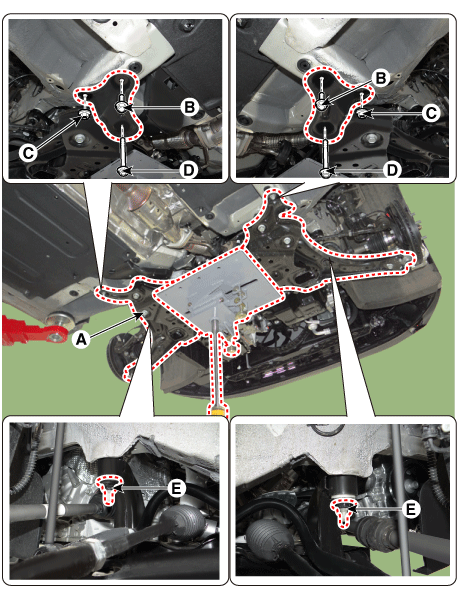

Support the sub frame (A) with a jack and then remove the sub frame bolts
and nuts.
|
Tightening torque:
Bolts (B), Nuts (C) : 44.1 - 53.9 N·m (4.5 - 5.5 kgf·m, 32.5
- 39.8 lb·ft)
Bolts (D), Nuts (E) : 176.5 - 196.1 N·m (18.0 - 20.0 kgf·m, 130.2
- 144.7 lb·ft)
|
|
| 9. |
Remove the sub frame (A).
|
| 10. |

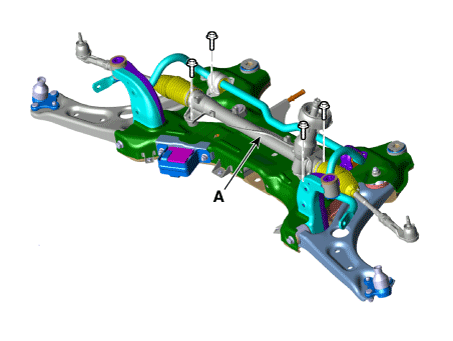

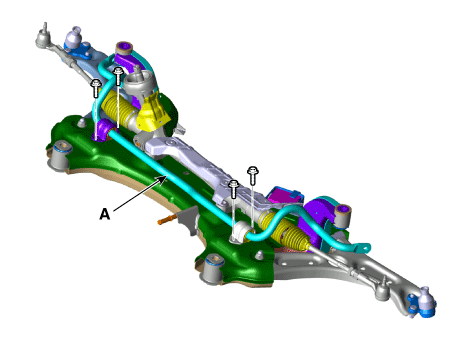

Loosen the bolts and then remove the stabilizer bar (A).
|
Tightening torque:
44.1 - 53.9 N·m (4.5 - 5.5 kgf·m, 32.5 - 39.8 lb·ft)
|
|
| 11. |
Loosen the bolts and then remove the heat protector (A).
|
Tightening torque:
6.9 - 10.8 N·m (0.7 - 1.1 kgf·m, 5.1 - 8.0 lb·ft)
|
|
| 12. |
Loosen the bolts and then remove the steering gear box (A).
|
Tightening torque:
88.3 - 107.9 N·m (9.0 -11.0 kgf·m, 65.1 - 79.6 lb·ft)
|
|
| 13. |
Install in the reverse order of removal.
|
| 14. |
Check the wheel alignment.
(Refer to Front Suspension System - "Front Alignment")
|
