Kia Forte: Lighting System / License Lamps

Kia Forte 2019-2020 (BD) Service Manual / Body Electrical System / Lighting System / License Lamps

Repair procedures
Removal
1.

Disconnect the negative (-) battery terminal.

2.

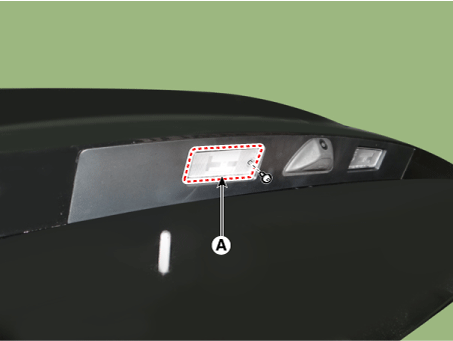

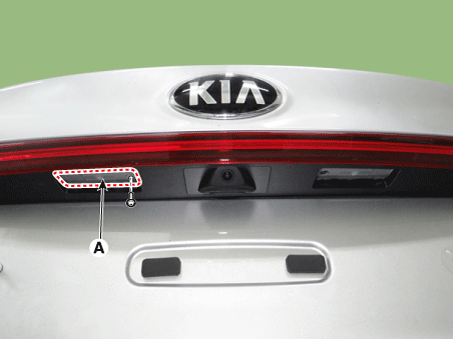

Remove the license lamp (A) after loosening a screw.

[4DR]

[5DR]

3.

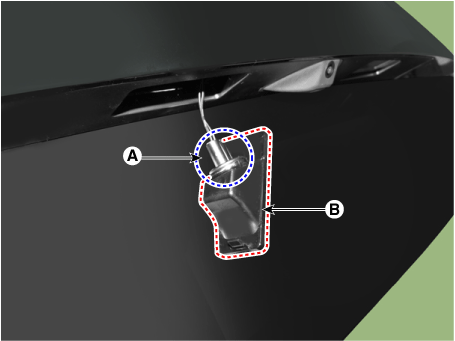

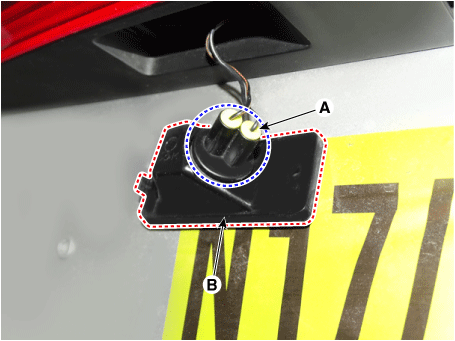

Remove the lens housing (B) by rotating the socket (A) in the counterclockwise.

[4DR]

[5DR]

4.

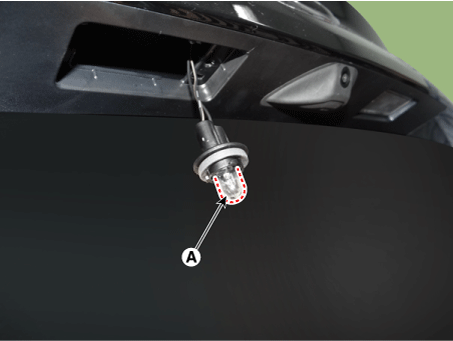

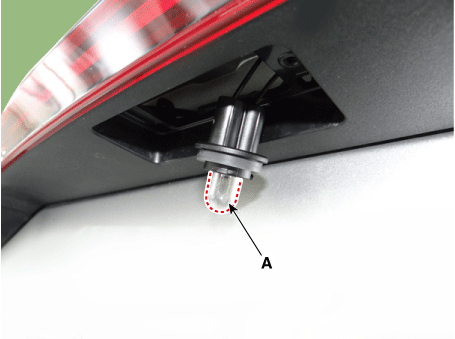

Remove the bulb (A).

[4DR]

[5DR]

Installation
1.

Install in the reverse order of removal.
