Schematic diagrams

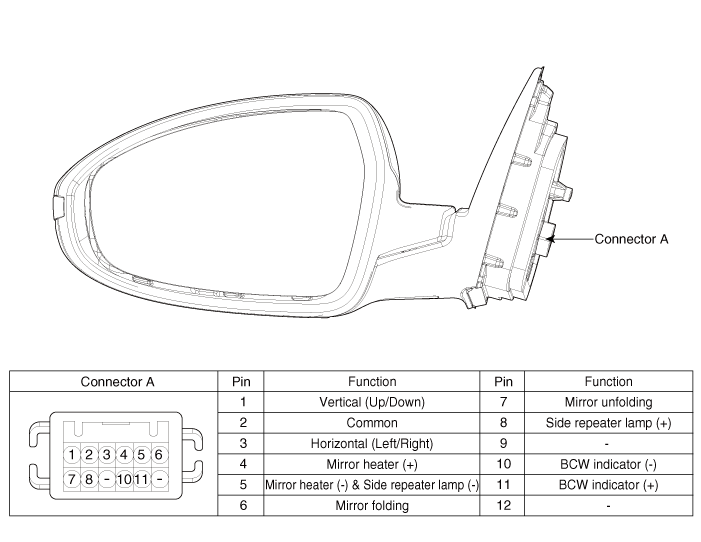

Connector and Terminal Function

Repair procedures
Inspection
1.

Disconnect the negative (-) battery terminal.

2.

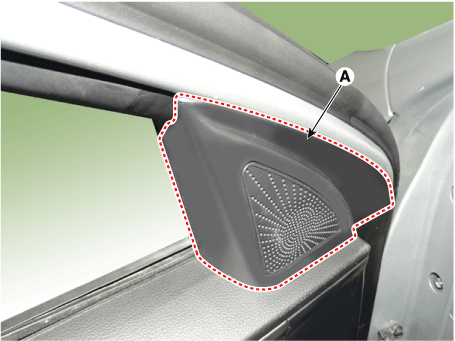

Remove the front door quadrant inner cover (A).

3.

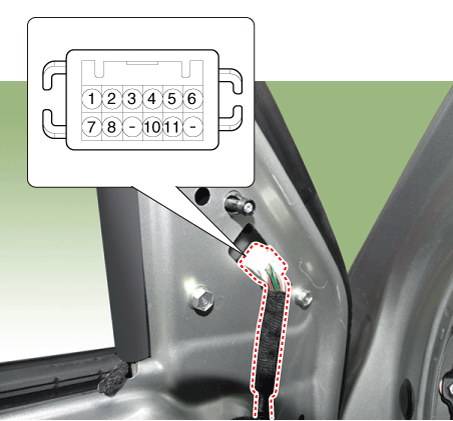

Disconnect the power door mirror connector from the harness.

4.

Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly.

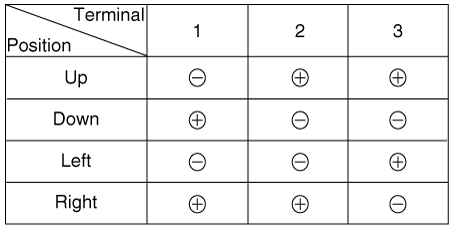

[Mirror Control]

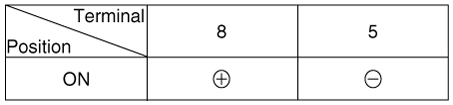

[Mirror Heater]

[Turn Signal Lamp]

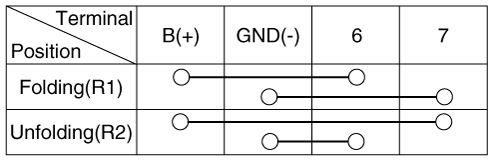

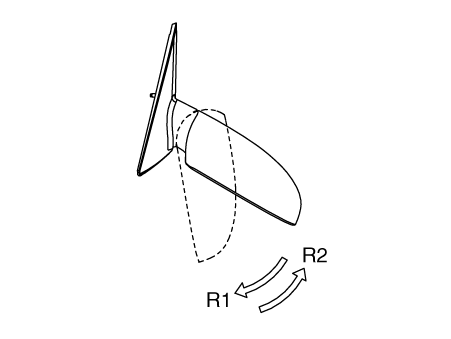

[Folding Mirror]

Replacement
1.

If the power door mirror actuator needs to be replaced, replacement the outside rear view mirror assembly.

(Refer to Body - "Outside Rear View Mirror")
