Kia Forte: Body Electrical System / Power Door Mirrors

Kia Forte 2019-2021 (BD) Service Manual / Body Electrical System / Power Door Mirrors

Components and components location
Component Location

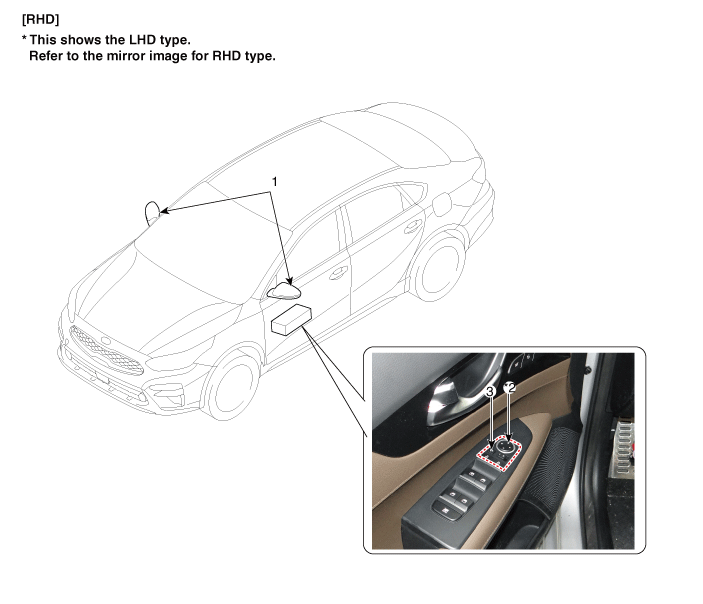

[4DR]

1. Power door mirror
2. Power door mirror switch
3. Power folding mirror switch

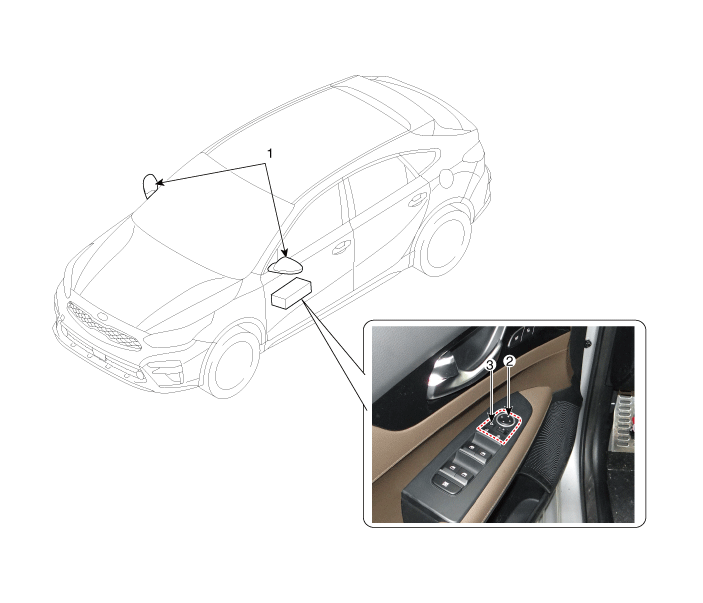

[5DR]

1. Power door mirror
2. Power door mirror switch
3. Power folding mirror switch

Power Door Lock Switch
Repair procedures Inspection Power Window Main Switch Assembly 1. Remove the front door trim. (Refer to Body - "Front Door Trim") 2. ...

Power Door Mirror Switch
Schematic diagrams Connector and Terminal Function Pin Function 1 Ground 2 - 3 ...
