Repair procedures
Inspection

Power Window Main Switch Assembly

1.

Remove the front door trim.

(Refer to Body - "Front Door Trim")

2.

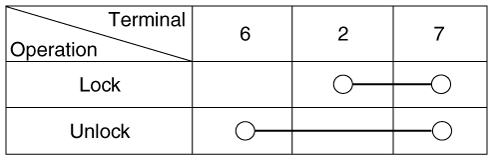

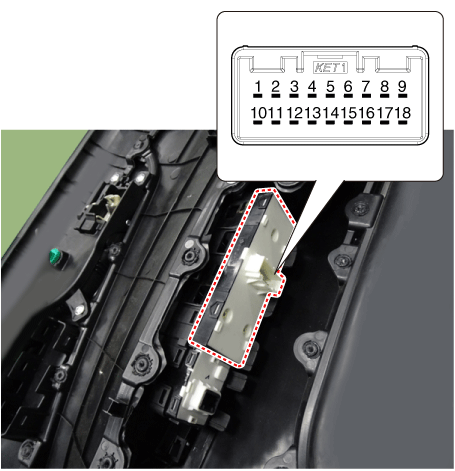

Check for continuity between the terminals in each switch position according to the table.

Removal


When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

1.

Disconnect the negative (-) battery terminal.

2.

Remove the front door trim.

(Refer to Body - "Front Door Trim")

3.

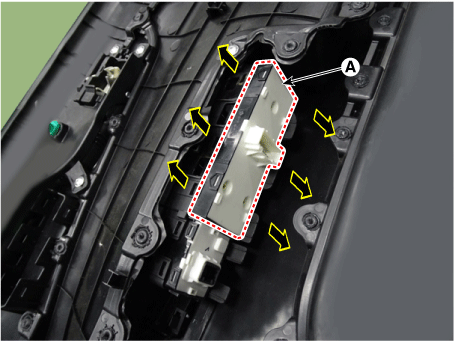

Remove the front door power window switch assembly (A) after disengaging the mounting holders.

Installation
1.

Install in the reverse order of removal.
