Kia Forte: Body Electrical System / Power Door Locks
Components and components location

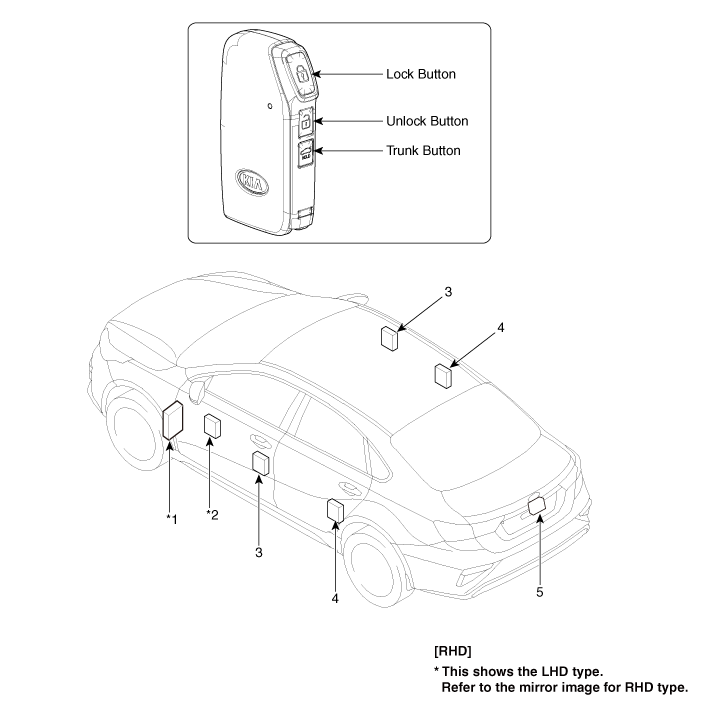

1. Integrated central control
unit (ICU)
2. Driver power window main switch assembly
3. Front door latch assembly
|
4. Rear door latch assembly
5. Trunk latch assembly
|

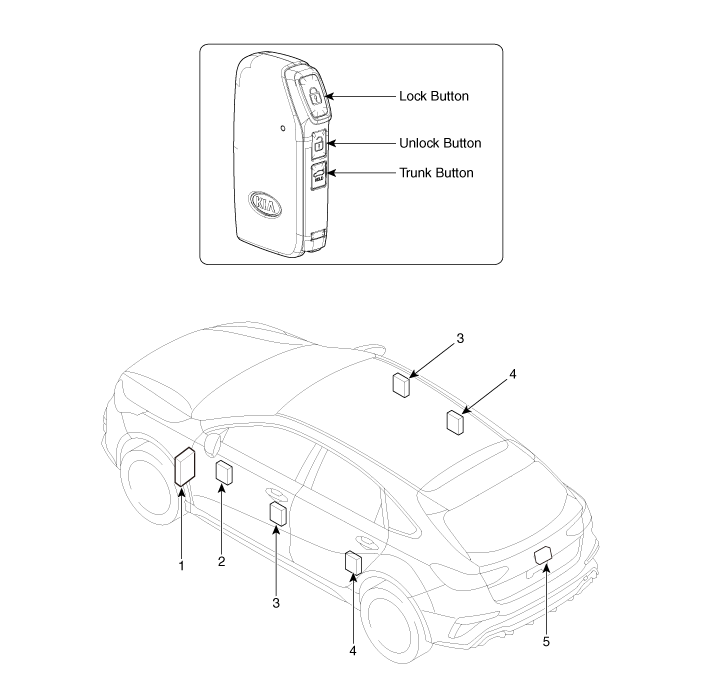

1. Integrated central control
unit (ICU)
2. Driver power window main switch assembly
3. Front door latch assembly
|
4. Rear door latch assembly
5. Tailgate latch assembly
|
Components and components location
Components Location
1. Parking Distance Warning (PDW)
Switch
Repair procedures
Removal
1.
...
Repair procedures
Inspection
When prying with a flat-tip screwdriver or use a prying trim tool, wrap
it with pro ...
Other information:
Specifications
Specifications
Items
Specifications
Rated voltage
DC +5 V
Load
Max. 1 mA (Relay load)
Illuminations (Lux)
100
1.08 ± 0.24 V
2 ...
Components and components location
Components
[4 Door]
1. Rear transverse trim
2. Luggage covering mat
3. Luggage side trim [LH]
4. Luggage side trim [RH]
5. Rear package tray trim
6. Luggage partition side trim
[5 Door]
...
