Kia Forte: Parking Distance Warning (PDW) / Parking Distance Warning (PDW) Switch

Kia Forte 2019-2021 (BD) Service Manual / Body Electrical System / Parking Distance Warning (PDW) / Parking Distance Warning (PDW) Switch

Components and components location

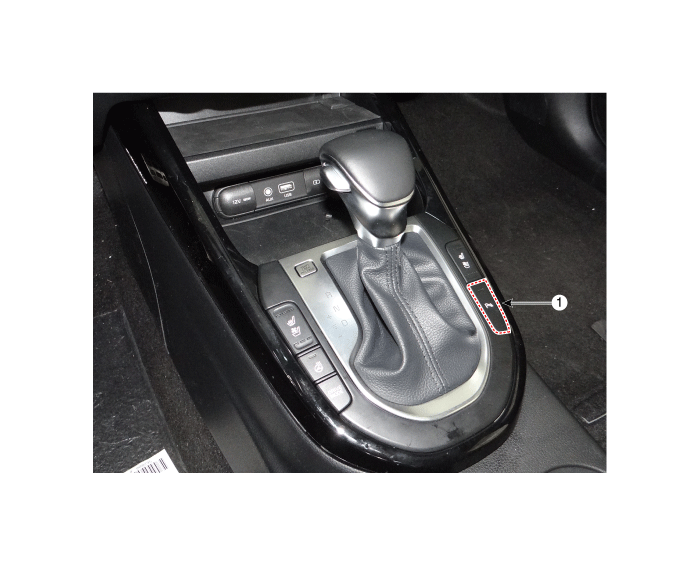

Components Location

1. Parking Distance Warning (PDW) Switch


Repair procedures
Removal
1.

Disconnect the negative (-) battery terminal.

2.

Remove the front console upper cover.

(Refer to Body - "Floor Console Assembly")

3.

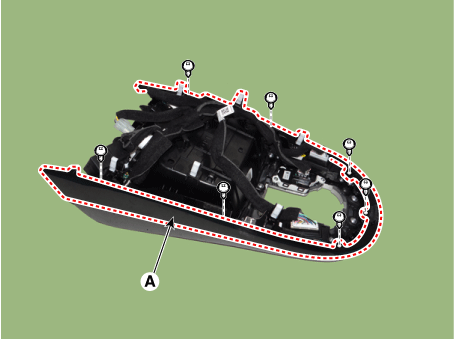

Remove the upper cover garnish (A) after loosening the screws.

4.

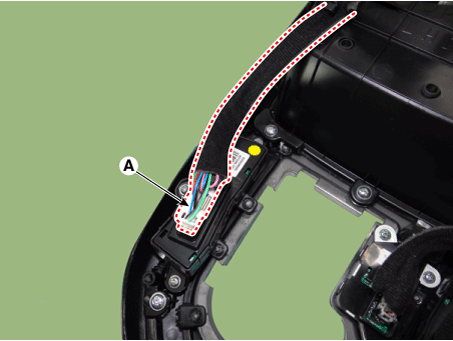

Disconnect the connector (A).

5.

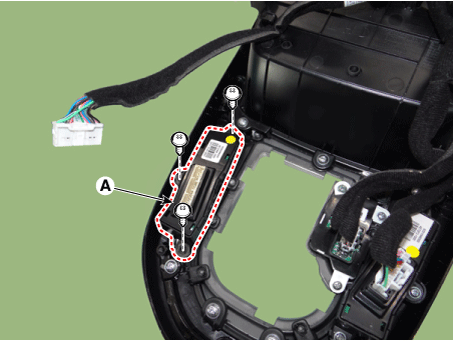

Remove the PDW switch (A) by loosening the screws.

Installation
1.

Install in the reverse order of removal.
