Repair procedures
Inspection


When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

Front Door Lock Module

1.

Remove the front door trim.

(Refer to Body - "Front Door Trim")

2.

Remove the front door module.

(Refer to Body - "Front Door Module")

3.

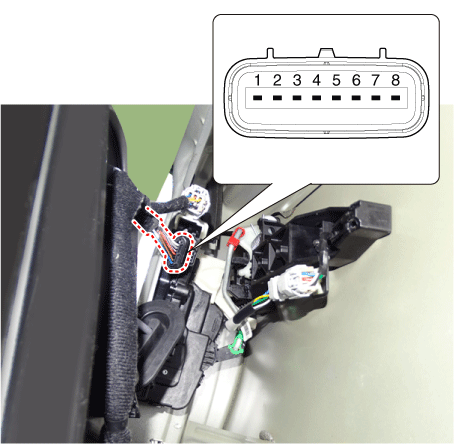

Disconnect the connector from the door lock actuator.

No.
Description
Left
Right
1
-
Ajar switch
2
Motor COM
Lock / Unlock switch
3
Motor
Switch COM
4
Key lock switch
Key unlock switch
5
Key unlock switch
Key lock switch
6
Switch COM
Motor
7
Lock / Unlock switch
Motor COM
8
Ajar switch
-

4.

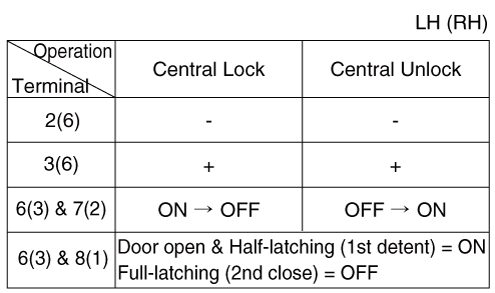

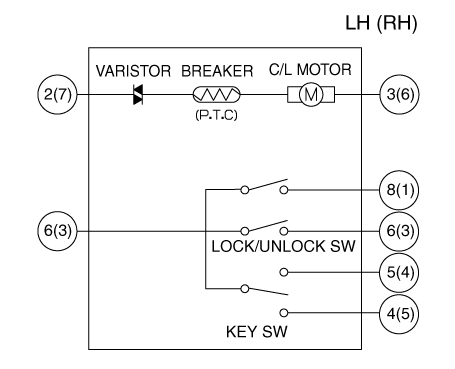

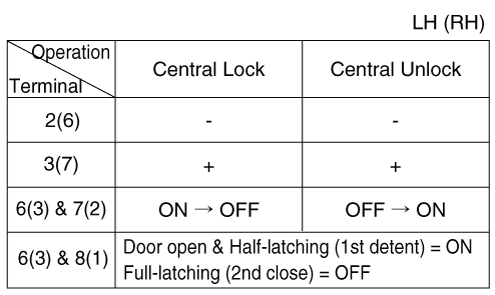

Check actuator operation by connecting power and ground as shown below. To prevent damage to the actuator, apply battery voltage only momentarily.

Rear Door Lock Module

1.

Remove the rear door trim.

(Refer to Body - "Rear Door Trim")

2.

Remove the rear door module.

(Refer to Body - "Rear Door Module")

3.

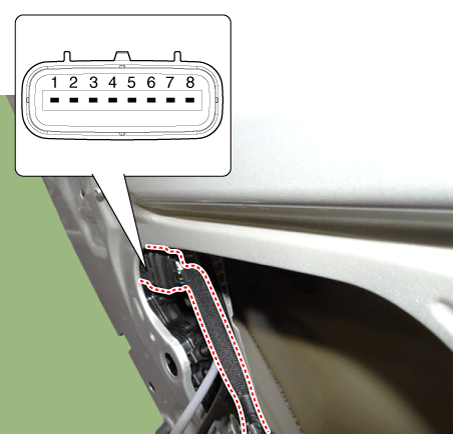

Disconnect the connector from the door lock actuator

No.
Description
Left
Right
1
-
Ajar switch
2
Motor COM
Lock / Unlock switch
3
Motor
Switch COM
4
-
-
5
-
-
6
Switch COM
Motor
7
Lock / Unlock switch
Motor COM
8
Ajar switch
-

4.

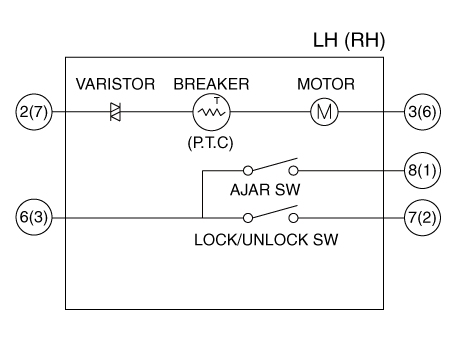

Check actuator operation by connecting power and ground as shown below. To prevent damage to the actuator, apply battery voltage only momentarily.

Trunk Lock Module

1.

Remove the trunk lid trim.

(Refer to Body - "Trunk lid trim")

2.

Disconnect the connector from the trunk lid latch.

3.

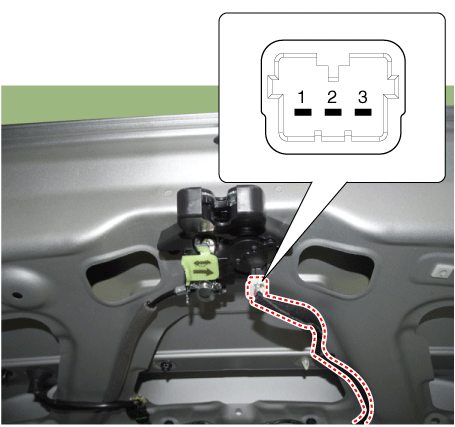

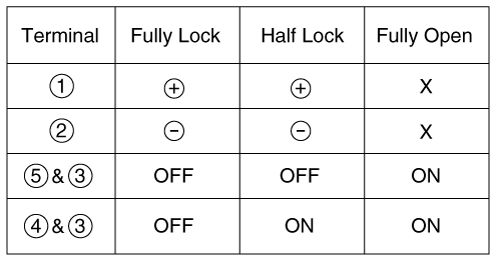

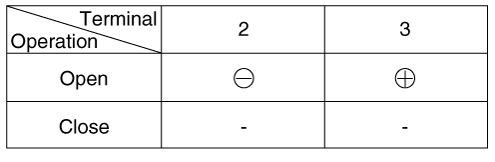

Check actuator operation by connecting power and ground as shown below. To prevent damage to the actuator, apply battery voltage only momentarily.

Tailgate Lock Module

1.

Remove the tailgate trim.

(Refer to Body - "Tailgate Trim")

2.

Disconnect the connector from the tailgate lid latch.

3.

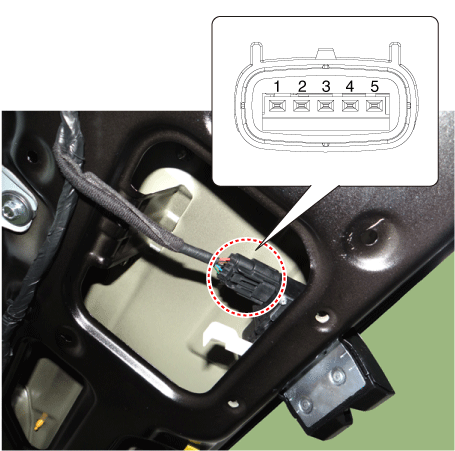

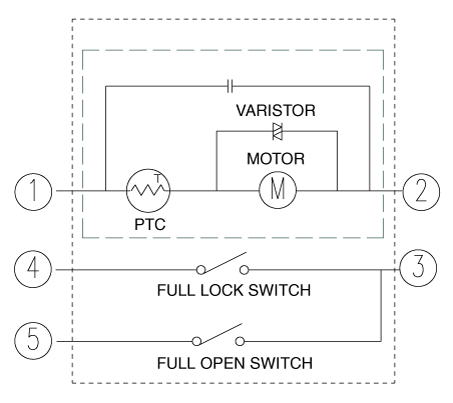

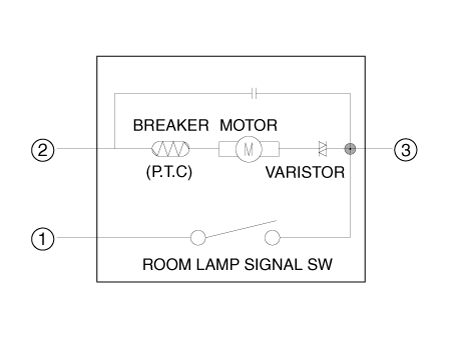

Check actuator operation by connecting power and ground as shown below. To prevent damage to the actuator, apply battery voltage only momentarily.

Removal

Front Door Lock Module

1.

Remove the front door latch.

(Refer to Body - "Front Door Latch")

Rear Door Lock Module

1.

Remove the rear door latch.

(Refer to Body - "Rear Door Latch")

Trunk Lock Module

1.

Remove the trunk lid latch.

(Refer to Body - "Trunk Lid Latch")

Tailgate Lock Module

1.

Remove the tailgate lid latch.

(Refer to Body - "Tailgate Latch")

Installation
1.

Install in the reverse order of removal.
