Kia Forte: Power Door Mirrors / Power Door Mirror Switch
Kia Forte 2019-2025 (BD) Service Manual / Body Electrical System / Power Door Mirrors / Power Door Mirror Switch
Schematic diagrams

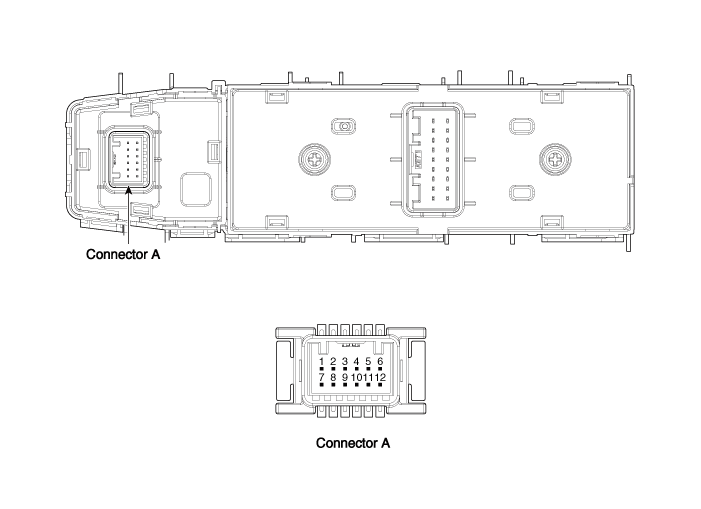

| Connector and Terminal Function |
|
Pin |
Function |
|
1 |
Ground |
|
2 |
- |
|
3 |
Mirror folding |
|
4 |
- |
|
5 |
Mirror folding switch |
|
6 |
Left mirror common |
|
7 |
Left mirror horizontal |
|
8 |
Mirror vertical |
|
9 |
Right mirror horizontal |
|
10 |
Right mirror common |
|
11 |
- |
|
12 |
ACC |

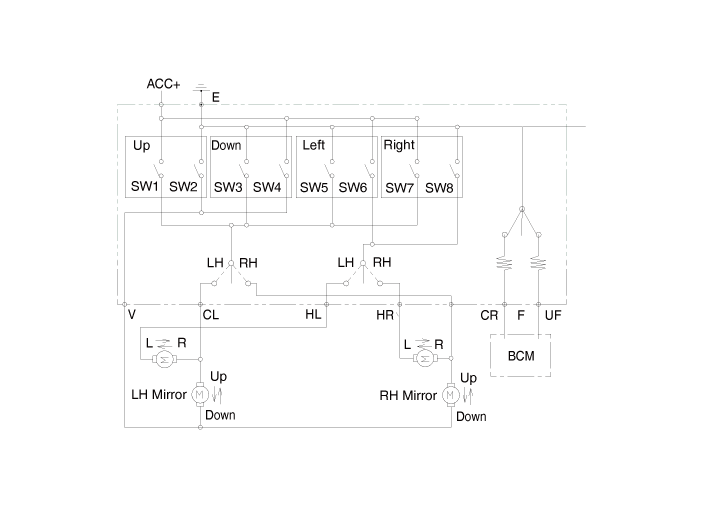

| Circuit Diagram |
Repair procedures
| Inspection |
| 1. |
Remove the front door trim. (Refer to Body - "Front Door Trim") |
| 2. |

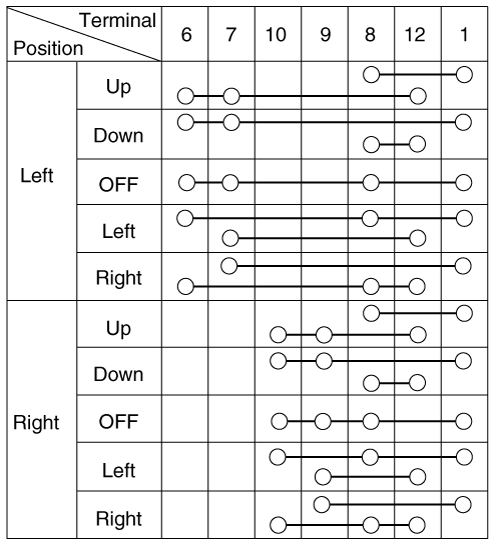

Check for continuity between the terminals in each switch position according to the table. [Power Mirror Switch]

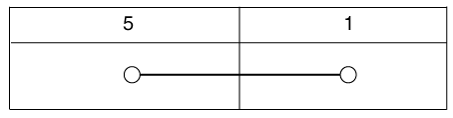

[Folding Switch]
|
| Removal |
| 1. |
Remove the front door trim. (Refer to Body - "Front Door Trim") |
| 2. |

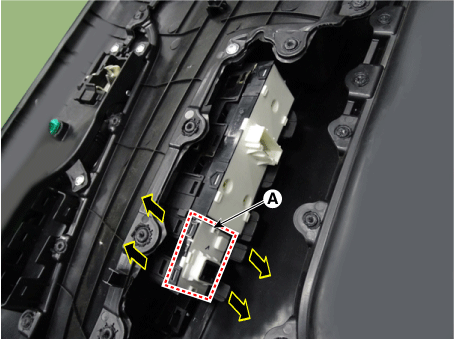

Remove the power mirror switch (A) by pulling out both ends of the switch holder.
|
| Installation |
| 1. |
Install in the reverse order of removal. |
Power Door Mirrors
Components and components location
Component Location
[4DR]
1. Power door mirror
2. Power door mirror switch
3. Power folding mirror switch
...
Power Door Mirror Actuator
Schematic diagrams
Connector and Terminal Function
Repair procedures
Inspection
1.
Disconnect the negative (-) battery terminal.
2.
...
