Kia Forte: Front Seat Belt / Front Seat Belt Buckle

Kia Forte 2019-2024 (BD) Service Manual / Body (Interior and Exterior) / Front Seat Belt / Front Seat Belt Buckle

Components and components location

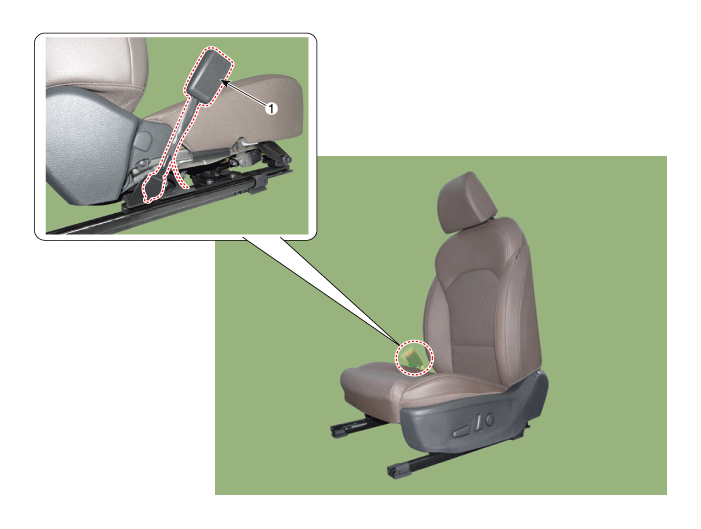

Component Location

1. Front seat belt buckle


Repair procedures
Replacement
1.

Remove the front seat assembly.

(Refer to Front Seat - "Front Seat Assembly")

2.

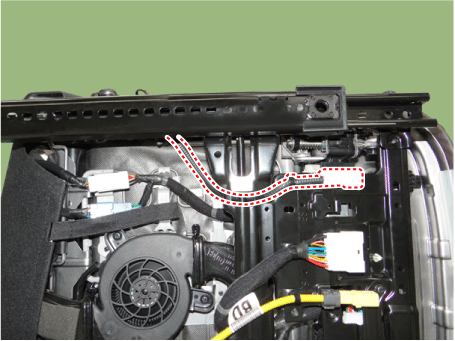

Disconnect the front seat belt buckle connector wiring (A).

3.

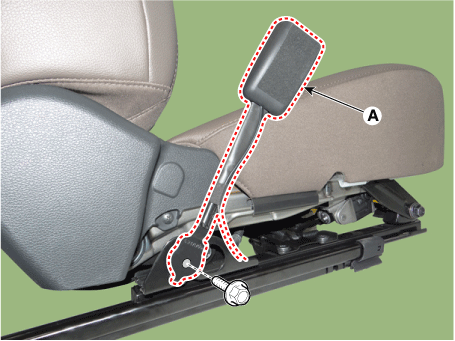

After loosening the mounting bolt, remove the front seat belt buckle (A).

Tightening torque :

39.2 - 53.9 N·m (4.0 - 5.5 Kgf·m, 28.9 - 39.8 lb·ft)

4.

To install, reverse the removal procedure.



Make sure the connector is plugged in properly.
