Kia Forte: Body (Interior and Exterior) / Rear Seat Belt

Kia Forte 2019-2025 (BD) Service Manual / Body (Interior and Exterior) / Rear Seat Belt

Components and components location

Components

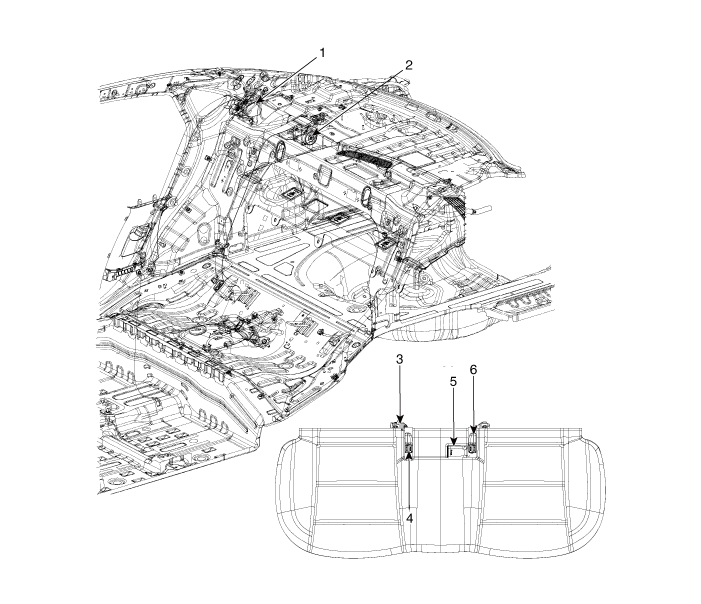

[4 Door]

1. Rear seat belt retractor [RH]
2. Rear center seat belt retractor
3. Center seat belt

4. Rear seat belt buckle [RH]
5. Rear center seat belt buckle
6. Rear seat belt buckle [LH]

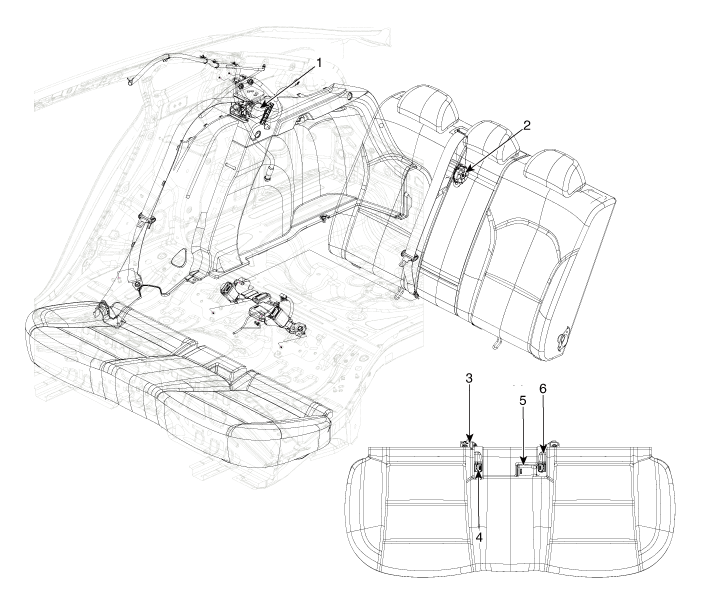

[5 Door]

1. Rear seat belt retractor [RH]
2. Rear center seat belt retractor
3. Center seat belt

4. Rear seat belt buckle [RH]
5. Rear center seat belt buckle
6. Rear seat belt buckle [LH]
