Kia Forte: Rear Seat Belt / Rear Seat Belt Buckle

Kia Forte 2019-2020 (BD) Service Manual / Body (Interior and Exterior) / Rear Seat Belt / Rear Seat Belt Buckle

Components and components location

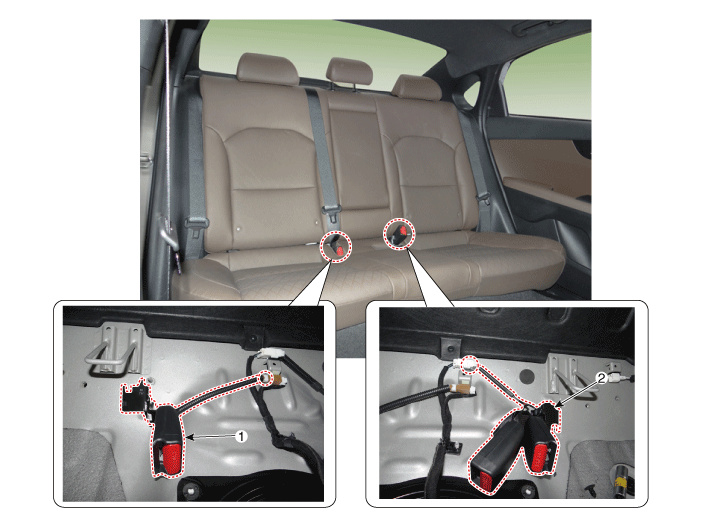

Component Location

1. Rear seat belt buckle [RH]
2. Rear center seat belt buckle [LH]

Repair procedures
Replacement
1.

Remove the rear seat cushion assembly.

(Refer to Rear Seat - "Rear Seat Cushion Assembly")

2.

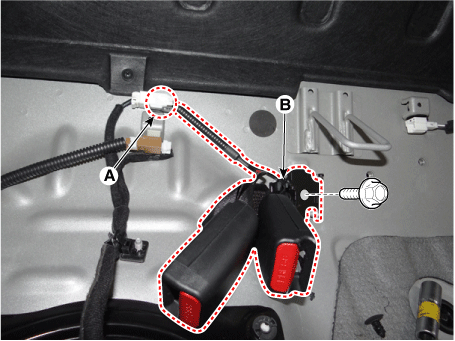

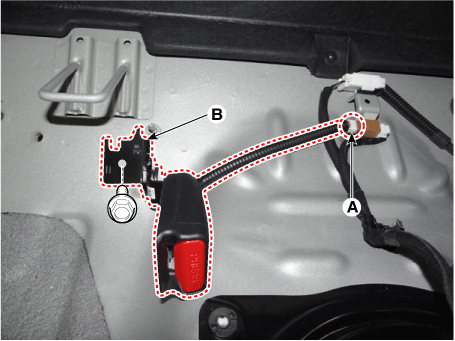

Disconnect the connector (A) and then remove the rear seat belt buckle (B) after loosening the mounting bolt.

[LH]

Tightening torque :

39.2 - 53.9 N·m (4.0 - 5.5 Kgf·m, 28.9 - 39.8 lb·ft)

[RH]

Tightening torque :

39.2 - 53.9 N·m (4.0 - 5.5 Kgf·m, 28.9 - 39.8 lb·ft)

3.

To install, reverse the removal procedure.



The buckle and tongue of different types are impossible to be latched, so check that the buckle & tongue have the same types.

Distinguish the rear side seat buckle from the center seat buckle before latching.

If foreign materials are stuck in the inside button of buckle, it may cause interference during the latching process, leading to a functional problem (for example - beverages (viscous drinks), toothpicks, sand, plastic, vinyl, metal pieces, etc.)

After latching the buckle and tongue, check the fastening force using a Push - Pull Gauge (fastening force: 3kgf or less).
