Kia Forte: Rear Seat Belt / Rear Center Seat Belt Retractor
Components and components location

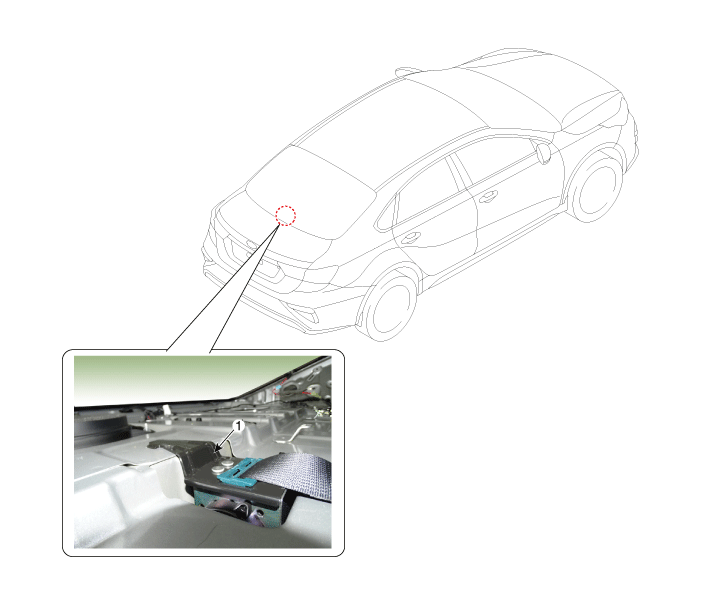

1. Rear center seat belt retractor
|
|
Repair procedures
When installing the belt, make sure not to damage the retractor.
|
1. |
Remove the package tray trim.
(Refer to Interior Trim - "Rear Package Tray Trim")
|
2. |

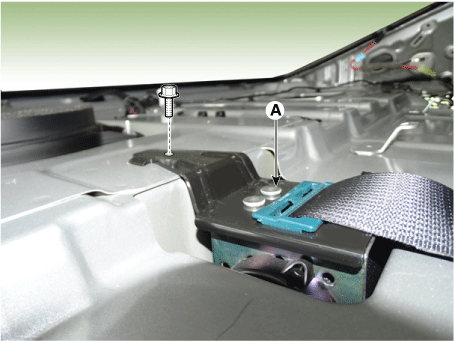

After loosening the mounting bolt, remove the rear center seat belt retractor
(A).
Tightening torque :
39.2 - 53.9 N·m (4.0 - 5.5 Kgf·m, 28.8 - 39.8 lb·ft)
|
|
3. |
To install, reverse the removal procedure.
Replace any damaged clips.
|
|
