Kia Forte: Rear Seat Belt / Rear Seat Belt Retractor

Kia Forte 2019-2021 (BD) Service Manual / Body (Interior and Exterior) / Rear Seat Belt / Rear Seat Belt Retractor

Components and components location
Component Location

[4 Door]

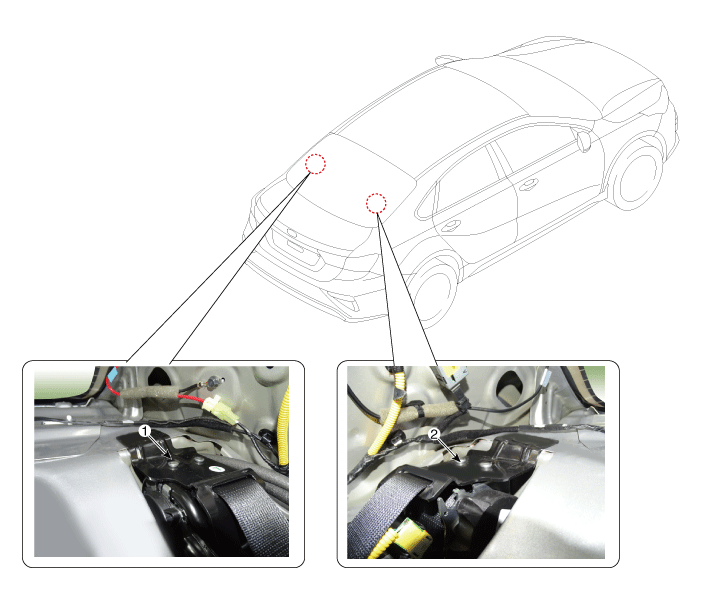

1. Rear seat belt retractor [LH]
2. Rear seat belt retractor [RH]

[5 Door]

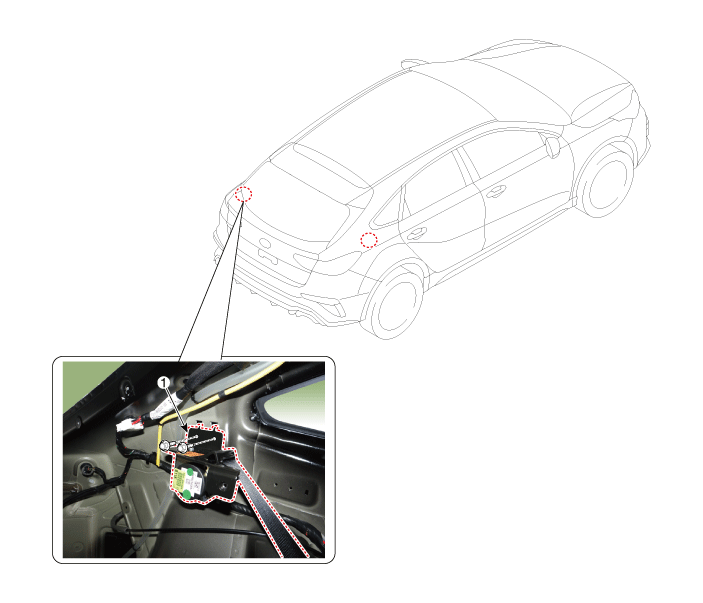

1. Rear seat belt retractor


Repair procedures
Replacement

[4 Door]



When installing the belt, make sure not to damage the retractor.

1.

Remove the package tray trim.

(Refer to Interior Trim - "Package Tray Trim")

2.

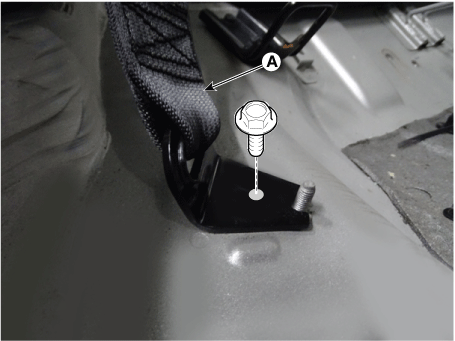

After loosening the mounting bolt, remove the rear seat belt lower anchor (A).

Tightening torque :

39.2 - 53.9 N·m (4.0 - 5.5 Kgf·m, 28.8 - 39.8 lb·ft)

[LH]

[RH]

3.

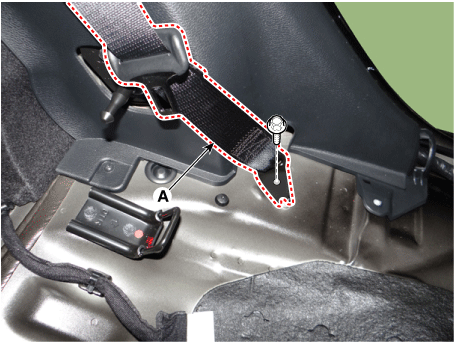

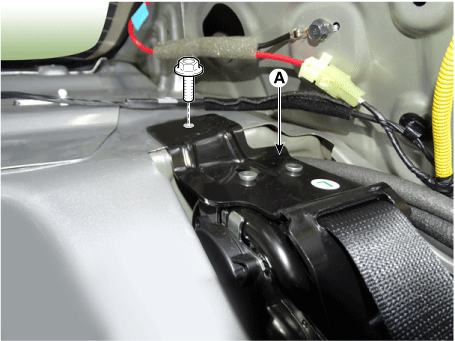

Loosen the retractor mounting bolt, remove the rear seat belt (A).

Tightening torque :

39.2 - 53.9 N·m (4.0 - 5.5 Kgf·m, 28.8 - 39.8 lb·ft)

[LH]

[RH]

4.

To install, reverse the removal procedure.



Replace any damaged clips (or pin - type retainers).

[5 Door]



When installing the belt, make sure not to damage the retractor.

1.

Remove the luggage side trim.

(Refer to Trunk Trim - "Luggage Side Trim")

2.

Remove the rear pillar trim.

(Rear to Interior Trim - "Rear Pillar Trim")

3.

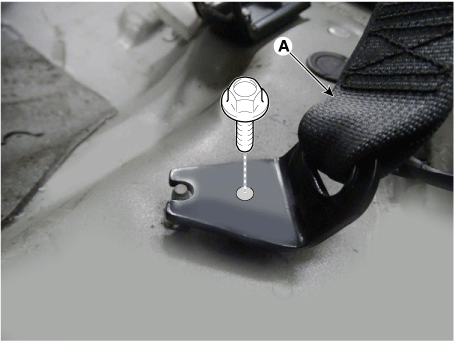

Loosen the mounting bolt and remove the rear seat belt lower anchor (A).

Tightening torque :

39.2 - 53.9 N·m (4.0 - 5.5 kgf·m , 28.9 - 39.8 lb·ft)

4.

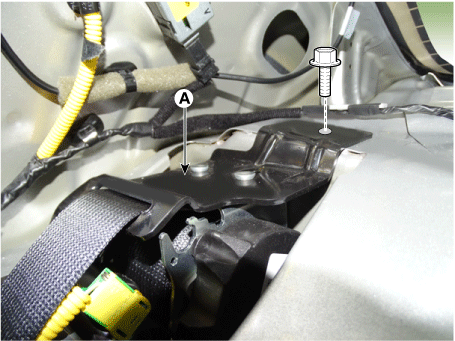

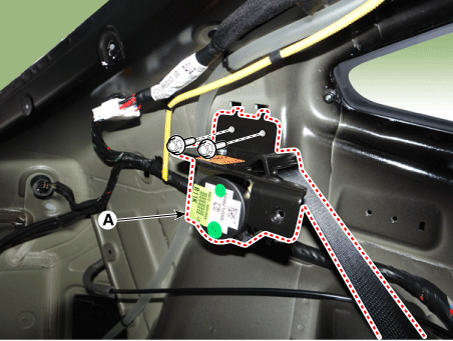

Loosen the mounting bolt and remove the rear seat belt retractor (A).

Tightening torque :

39.2 - 53.9 N·m (4.0 - 5.5 kgf·m , 28.9 - 39.8 lb·ft)

5.

To install, reverse removal procedure.



Replace any damaged clips (or pin-type retainers).
