Kia Forte: Instrument cluster / Transmission Shift Indicator
Intelligent Variable Transmission

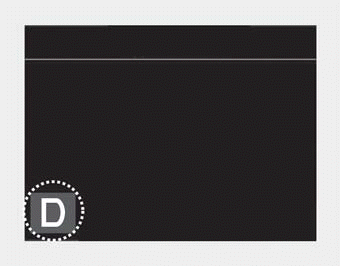

This indicator displays which intelligent
variable transmission shift lever
mode is selected.
- Park :P
- Reverse : R
- Neutral : N
- Drive :D
- Sports Mode : 1, 2, 3, 4, 5, 6
Manual transmission shift indicator

This indicator informs which gear is
desired while driving to save fuel.

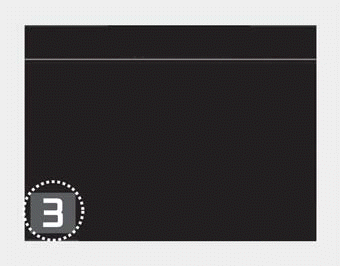

- Shifting up :▲2, ▲3, ▲4, ▲5, ▲6
- Shifting down : ▼1, ▼2, ▼3, ▼4,
▼5
For example
▲3: Indicates that shifting up to the
3rd gear is desired (currently the
shift lever is in the 2nd or 1st
gear).
▼4: Indicates that shifting down to
the 4th gear is desired (currently
the shift lever is in the 5th or 6th
gear).
When the system is not working properly,
the indicator is not displayed.
Dual clutch transmission shift
indicator
Dual clutch transmission shift
indicator
This indicator displays which shift
lever mode is selected.
- Park :P
- Reverse : R
- Neutral : N
- Drive : D1, D2, D3, D4, D5, D6, D7
- Sports Mode : S1, S2, S3, S4, S5,
S6, S7
Odometer
Odometer
The odometer indicates the total distance
the vehicle has been driven.
You will also find the odometer useful
to determine when periodic maintenance
should be performed.
...
Over view
LCD windows show the following various
information to drivers.
- Trip information
- LCD modes
- Warning messages ...
Other information:
Curtain air bags are located along
both sides of the roof rails above the
front and rear doors.
They are designed to help protect
occupants in certain side impacts
and to help prevent them from ejecting
out of the vehicle as a result of a
rollover, especially when the seatbelts
ar ...
