Repair procedures
Removal and Installation
1.

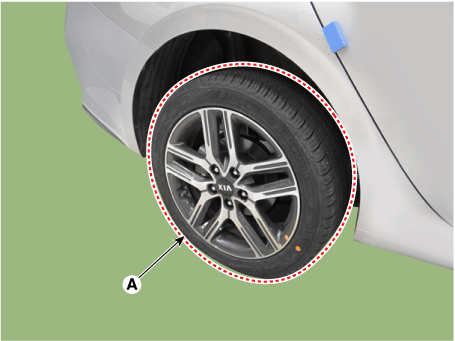

Remove the rear wheel and tire (A).

Tightening torque :

107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94.0 lb·ft)



Be careful not to damage to the hub bolts when removing the rear wheel and tire.

2.

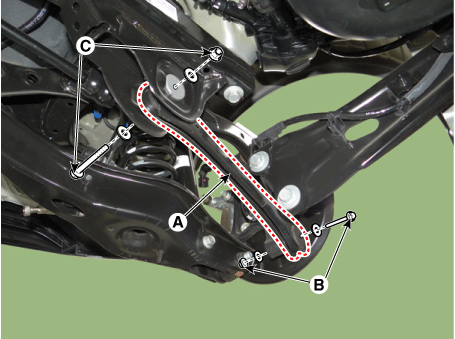

Remove the rear assist arm (A) by loosening the bolts and nuts.

Tightening torque :

Bolt and nut (B) : 137.3 - 156.9 N·m (14.0 - 16.0 kgf·m, 101.3 - 115.7 lb·ft)

Bolt and nut (C) : 107.9 - 117.7 N·m (11.0 - 12.0 kgf·m, 79.6 - 86.8 lb·ft)



Set up the jack under the lower arm in order to remove it in no-load condition.

3.

Install in the reverse order of removal.

4.

Check the wheel alignment.

(Refer to Rear Suspension System - "Rear Alignment")

Inspection
1.

Check the bushing for wear and deterioration.

2.

Check the rear assist arm for deformation..

3.

Check for all bolts and nut
