Kia Forte: Suspension System / Rear Suspension System - Multi link

Kia Forte 2019-2025 (BD) Service Manual / Suspension System / Rear Suspension System - Multi link

Components and components location

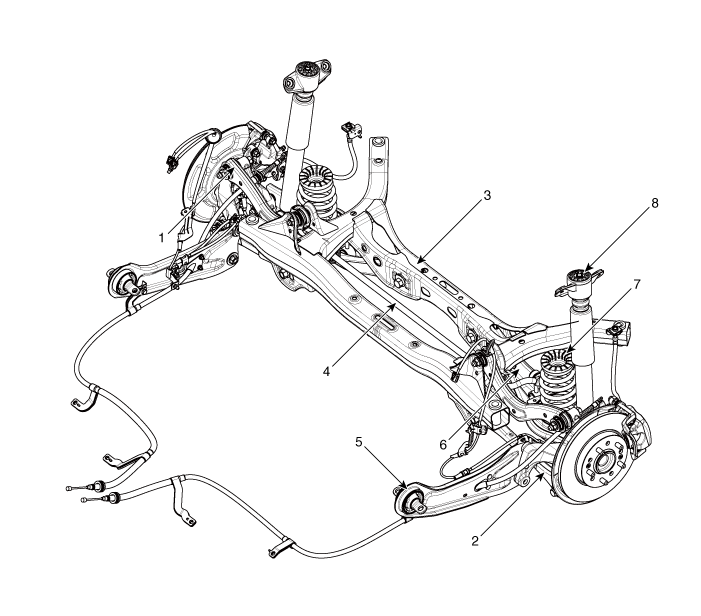

Components Location

1. Rear upper arm
2. Assist arm
3. Rear cross member
4. Rear stabilizer bar
5. Trailing arm
6. Rear lower arm
7. Rear coil spring
8. Rear shock absorber

Rear Alignment
Repair procedures Rear Wheel Alignment 1. When using a commercially available computerized wheel alignment equipment to inspect the rear wheel alignment, always positi ...

Rear Shock Absorber
Components and components location Components 1. Shock absorber dust cap 2. Lock nut 3. Insulator assembly 4. Bumper rubber 5. Dust cover 6. Shock ...
