Kia Forte: Rear Door / Rear Door Outside Handle

Kia Forte 2019-2021 (BD) Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Outside Handle

Components and components location

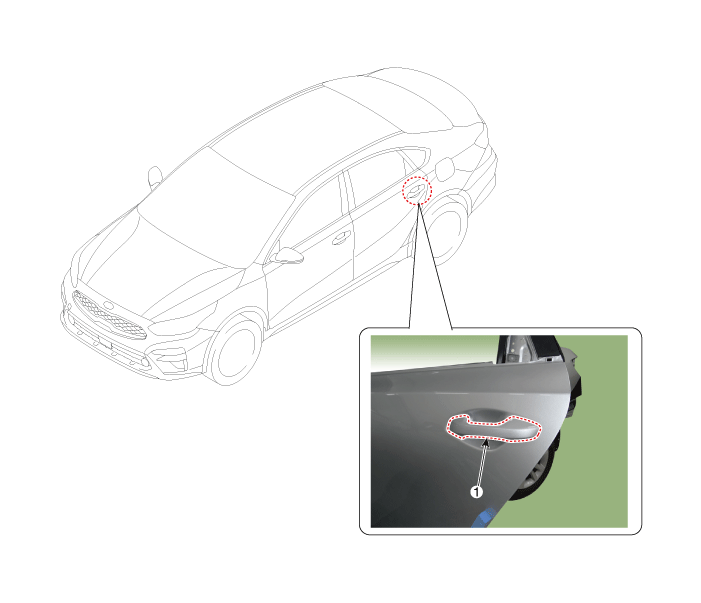

Component Location

1. Rear door outside handle


Repair procedures
Replacement
1.

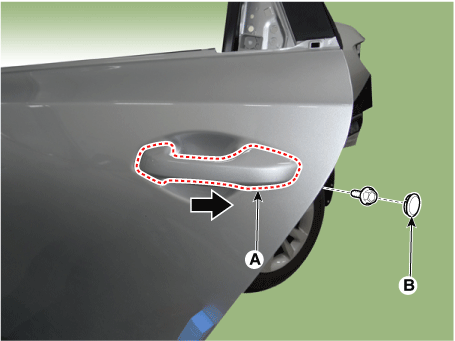

Remove the plug hole (B).

2.

After loosening the mounting bolt, remove the rear door outside handle (A).

Tightening torque :

7.8 - 10.8 N·m (0.8 - 1.1 Kgf·m, 5.8 - 8.0 lb·ft)

3.

To install, reverse the removal procedure.



Make sure the door locks / unlocks and opens / closes properly.

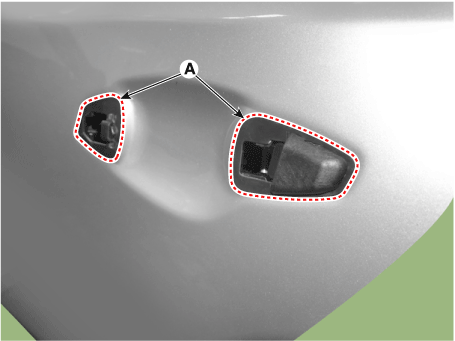

Be sure to install the outside handle pad (A) between the outside handle and the door panel.
