Kia Forte: Rear Door / Rear Door Latch

Kia Forte 2019-2021 (BD) Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Latch

Components and components location

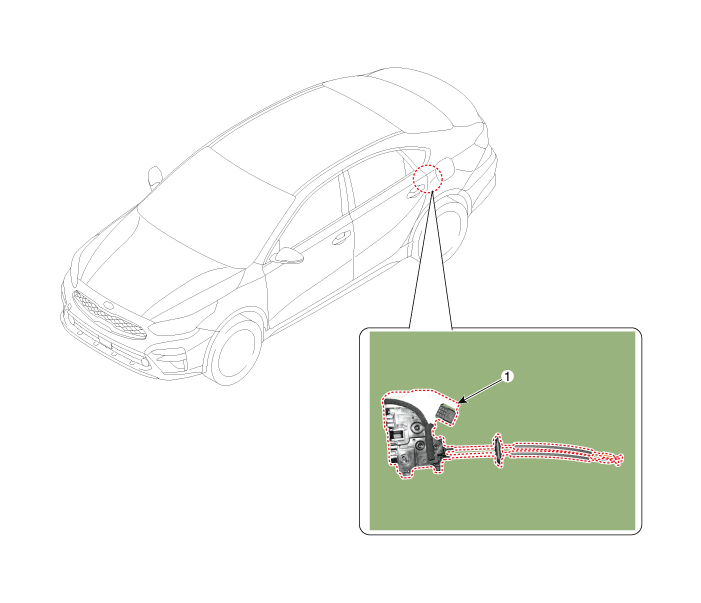

Component Location

1. Rear door latch


Repair procedures
Replacement
1.

Remove the rear door module.

(Refer to Rear Door - "Rear Door Module")

2.

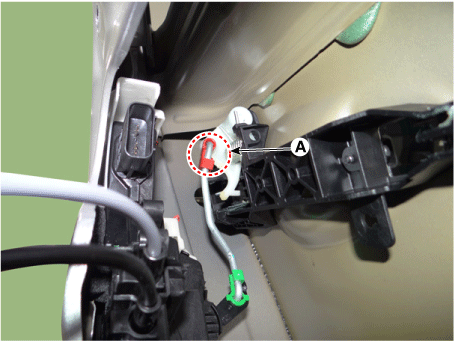

Disconnect the rear door latch load (A).

3.

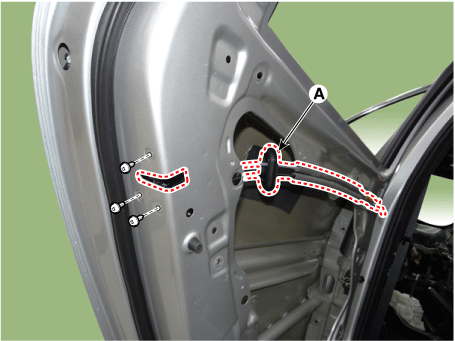

After loosening the mounting screws, remove the rear door latch (A)

4.

To install, reverse the removal procedure.



Make sure the connector is connected properly.

Make sure the door locks / unlocks and opens / closes properly.

Replace any damaged clips (or pin - type retainers).
