Kia Forte: Sunroof / Sunroof Switch

Kia Forte 2019-2022 (BD) Service Manual / Body Electrical System / Sunroof / Sunroof Switch

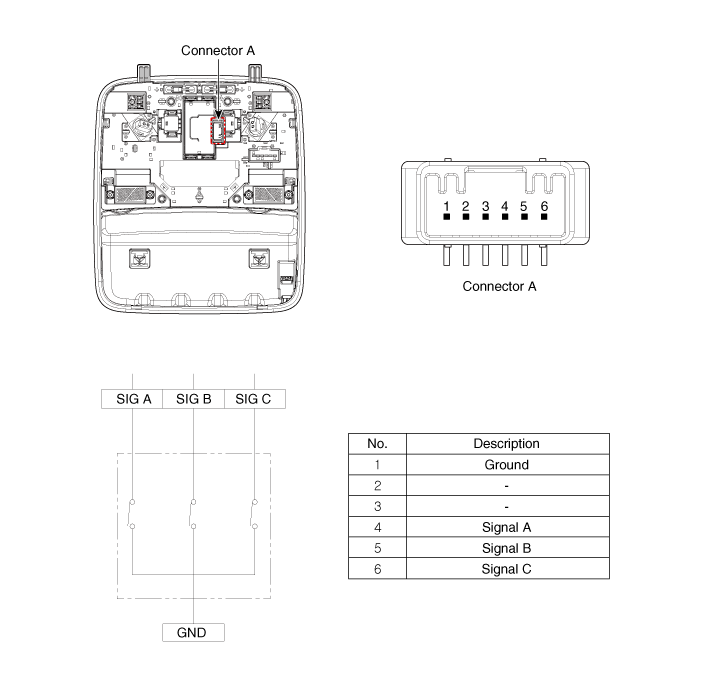

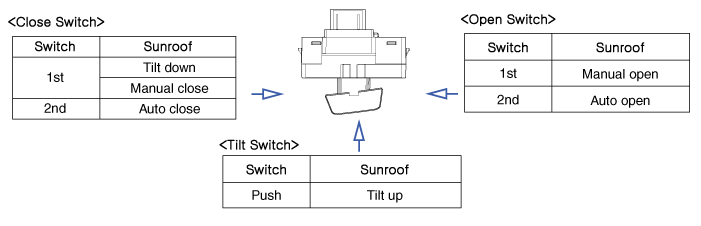

Components and components location
Components

Repair procedures
Inspection
1.

Remove the overhead console lamp.

(Refer to Lighting System - "Overhead Console Lamp")

2.

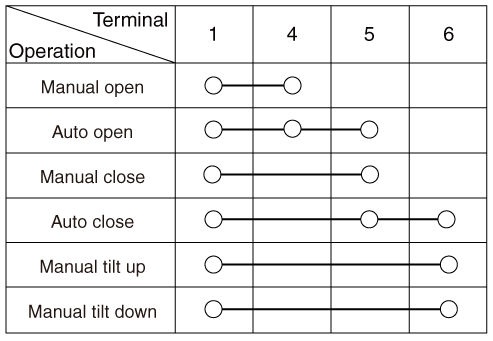

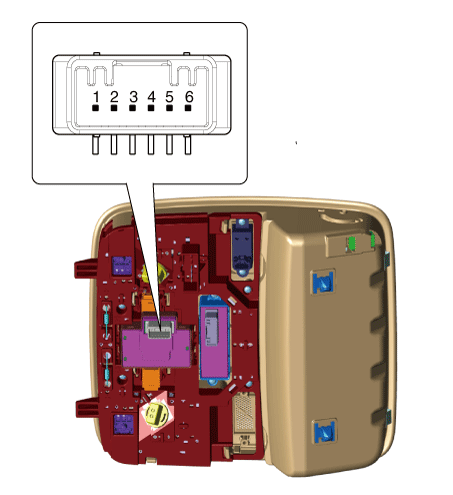

Check for continuity between the terminals. If the continuity is not shown as specified, replace the switch.

Removal
1.

Remove the overhead console lamp.

(Refer to Lighting System - "Overhead Console Lamp")

Installation
1.

Install in the reverse order of removal.
