Components and components location

Component Location

[4DR]

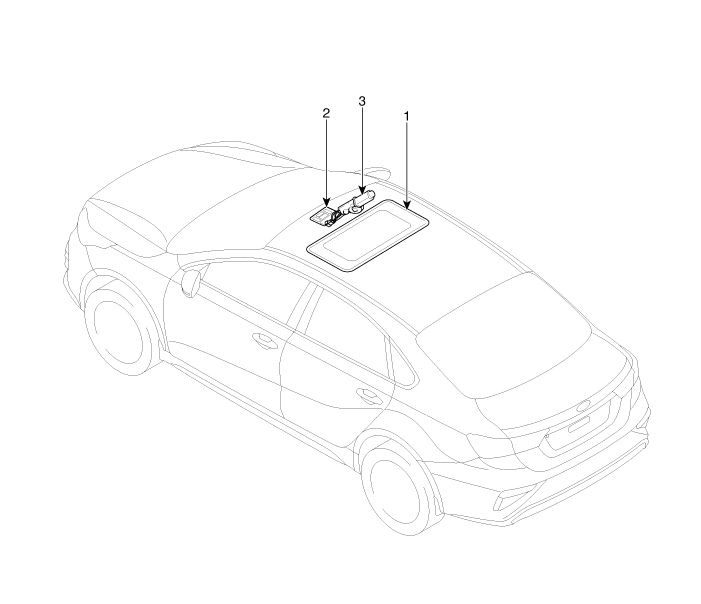

1. Sunroof
2. Sunroof switch

3. Sunroof motor & controller

[5DR]

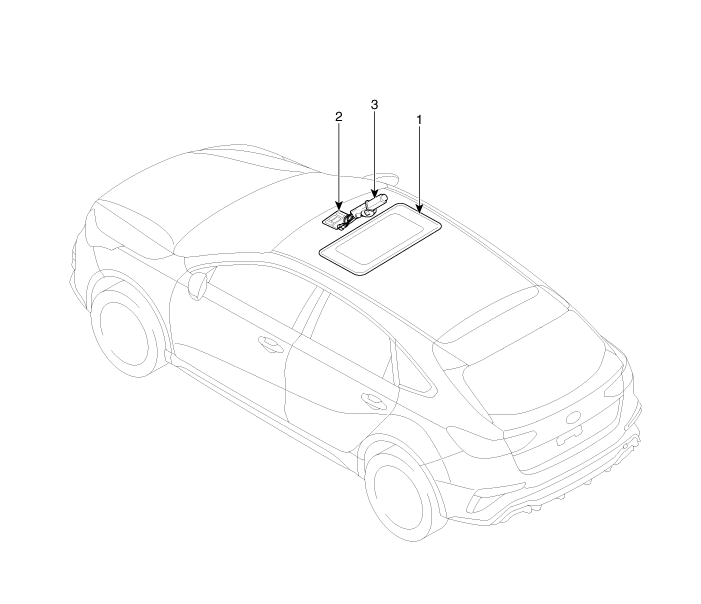

1. Sunroof
2. Sunroof switch

3. Sunroof motor & controller

Schematic diagrams

Circuit Diagram

Description and operation

Description

There is one touch on/off switch to open and close the glass, and it has ANTI-PINCH function which prevent object jamming while performing AUTO CLOSE.

Smart Key Antenna

Repair procedures Removal Interior Antenna 1 Take care not to bend or scratch the trim and panels. ...

Sunroof Switch

Components and components location Components Repair procedures Inspection 1. Remove the overhead console lamp. (Refer to Lighting System - "Overh ...
