Kia Forte: Rear Bumper / Rear Bumper beam Assembly

Kia Forte 2019-2022 (BD) Service Manual / Body (Interior and Exterior) / Rear Bumper / Rear Bumper beam Assembly

Components and components location
Component Location

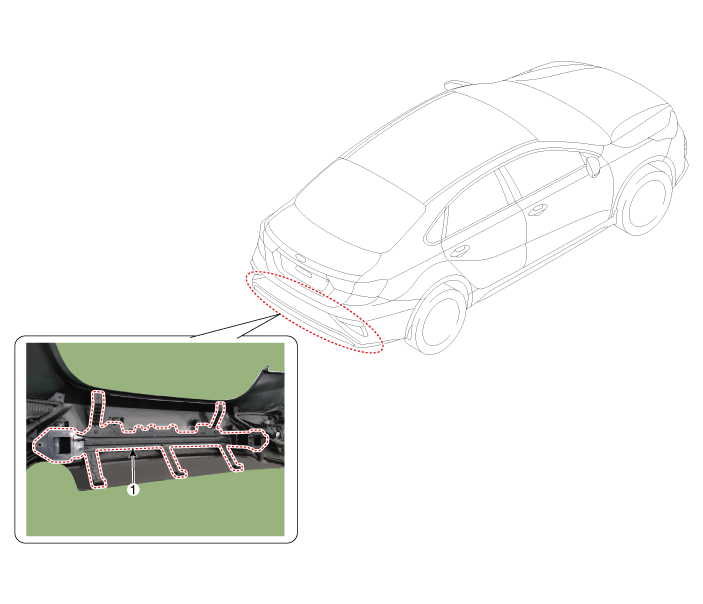

[4 Door]

1. Rear bumper beam assembly

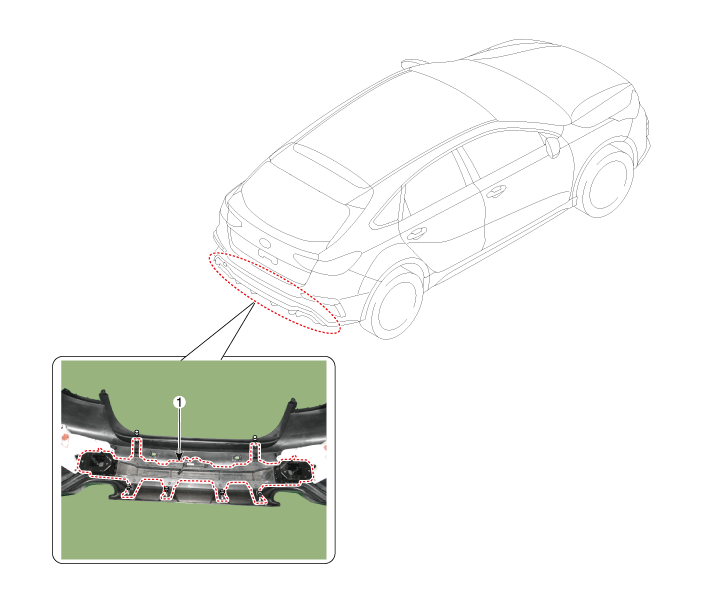

[5 Door]

1. Rear bumper beam assembly



Repair procedures
Replacement


Put on gloves to prevent hand injuries.



When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.

Take care not to bend or scratch the trim and panels.

1.

Remove the rear bumper assembly.

(Refer to Rear Bumper - "Rear Bumper assembly")

2.

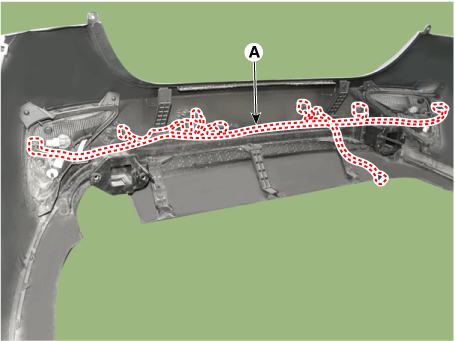

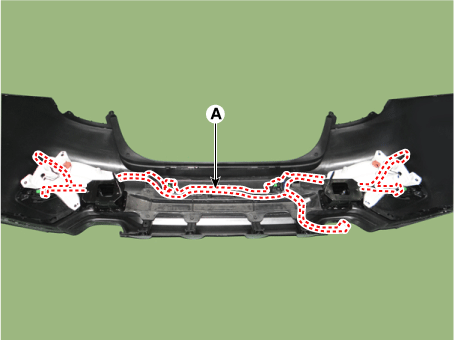

Disconnect the rear bumper beam mounting wiring harness (A).

[4 Door]

[5 Door]

3.

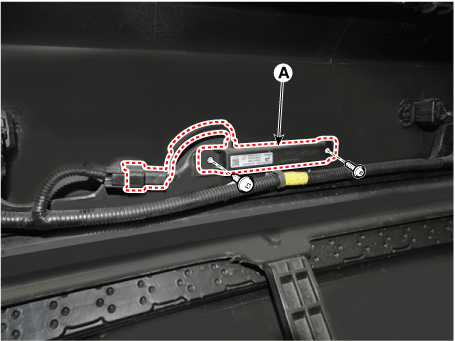

Loosen the mounting bolts and remove the smart key antenna (A).

4.

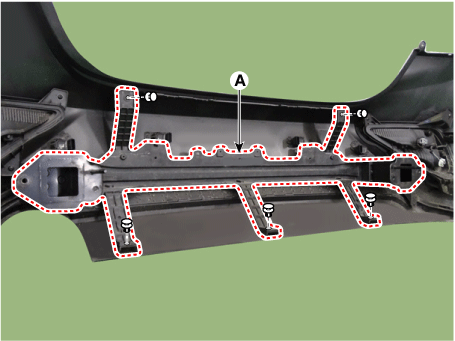

After loosening the mounting screws, remove the rear bumper beam assembly (A).

[4 Door]

[5 Door]

5.

To install, reverse the removal procedure.



Make sure the connector is plugged in properly.

Replace any damaged clips (or pin - type retainers).
