Kia Forte: Body (Interior and Exterior) / Front Seat

Kia Forte 2019-2024 (BD) Service Manual / Body (Interior and Exterior) / Front Seat

Components and components location

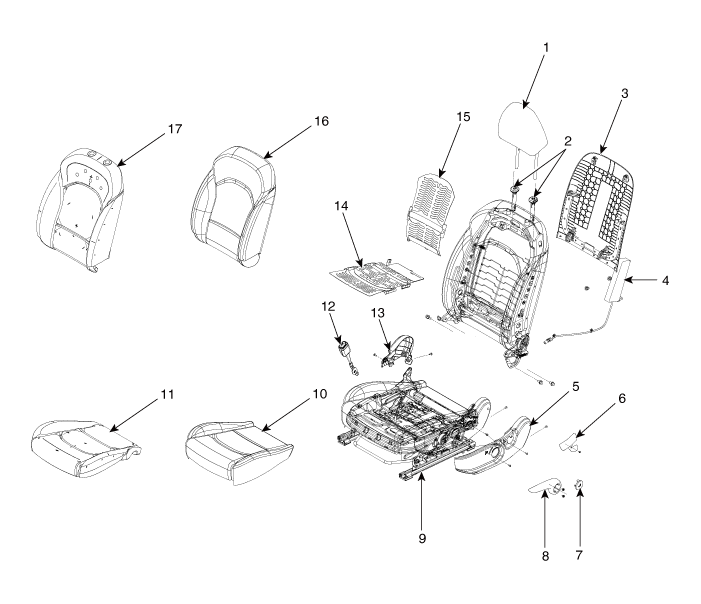

Components

1. Front seat headrest
2. Front seat headrest guide
3. Front seat back board
4. Front seat SAB module
5. Front seat shield outer cover
6. Front seat recliner lever
7. Front seat height lever cap
8. Front seat height lever
9. Front seat cushion frame assembly
10. Front seat cushion covering
11. Front seat cushion pad
12. Front seat belt buckle
13. Front seat shield inner cover
14. Front seat cushion heater
15. Front seat back heater
16. Front seat back covering
17. Front seat back pad
