Components and components location
Component Location

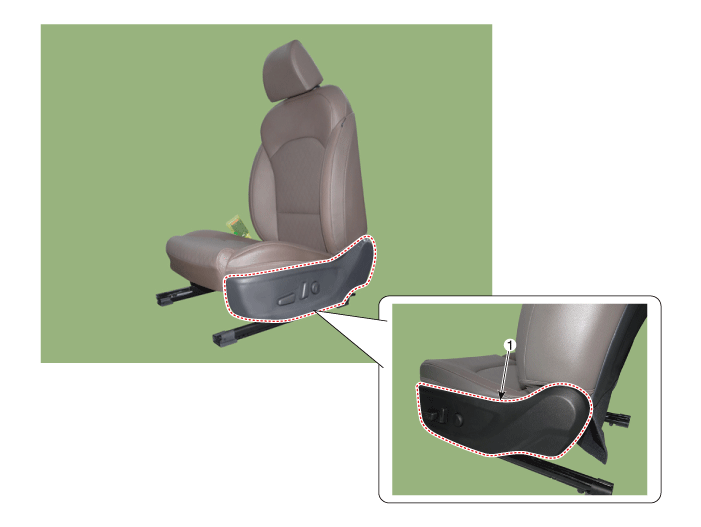

1. Front seat shield outer cover


Repair procedures
Replacement


Put on gloves to prevent hand injuries.



When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

Take care not to bend or scratch the trim and panels.

1.

Remove the front seat assembly.

(Refer to Front Seat - "Front Seat Assembly")

2.

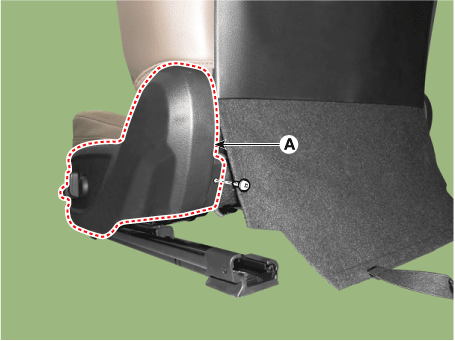

Remove the front seat lower protector (A).

3.

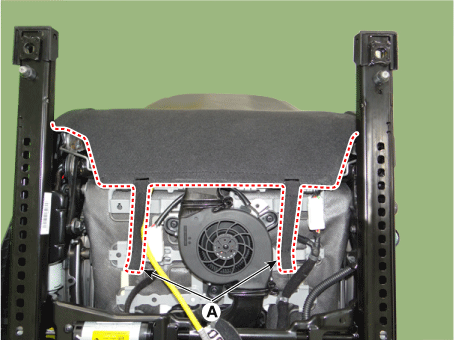

Remove the front seat outer shield cover (A) by pulling forward in the direction of the arrow using screw driver or remover.

4.

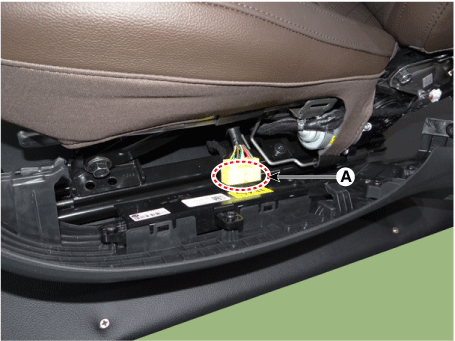

Disconnect the front seat power switch connector (A).

5.

To install, reverse the removal procedure.



Make sure the connector is plugged in properly.

Replace any damaged clips (or pin - type retainers).
