Kia Forte: Front Seat / Front Seat Assembly

Kia Forte 2019-2023 (BD) Service Manual / Body (Interior and Exterior) / Front Seat / Front Seat Assembly

Components and components location
Component Location

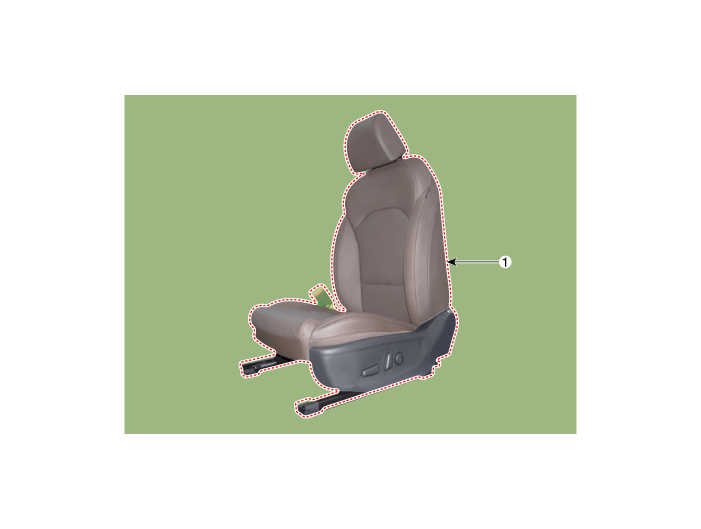

1. Front seat assembly


Repair procedures
Replacement
1.

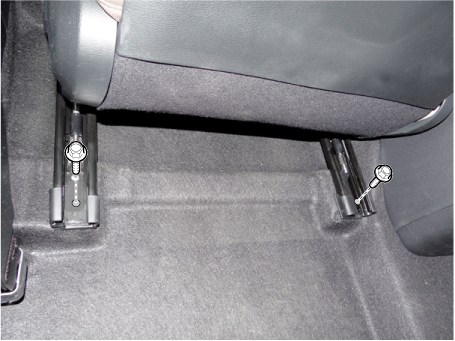

Open the cover and loosen the front seat mounting bolts.

[Front]

Tightening torque :

34.3 - 53.9 N·m (3.5 - 5.5 Kgf·m, 25.3 - 39.8 lb·ft)

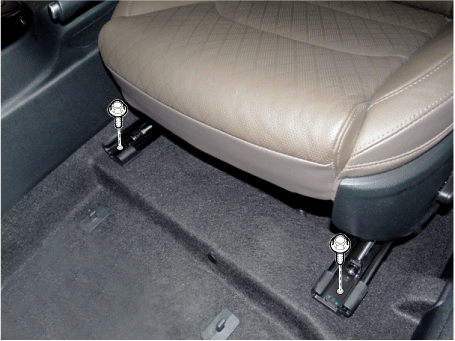

[Rear]

Tightening torque :

34.3 - 53.9 N·m (3.5 - 5.5 Kgf·m, 25.3 - 39.8 lb·ft)

2.

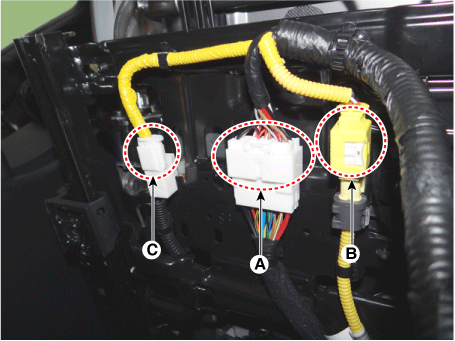

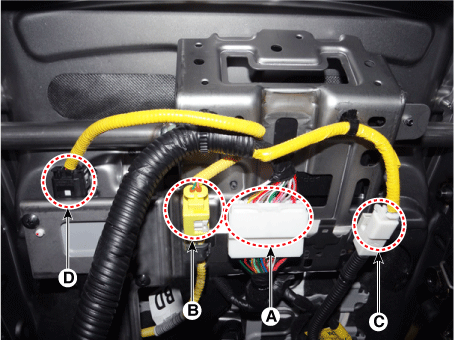

Disconnect the main connector (A), front seat belt buckle connector (C), airbag connector (B), seat belt reminder connector (D).

[Driver's]

[Passenger's]

3.

To install, reverse the removal procedure.



The installation procedures of seat mounting bolts

Push the seat to the rear end of slides and initially tighten the front mounting bolts.

Push the seat to the front end of slides and completely tighten the rear mounting bolts.

Send the seat to the rear end again to completely tighten the front mounting bolts.

Check the seat for smooth movement.

For the non - automatic slide seats, check the seats are fixed at each designated fixing position.
