Kia Forte: Front Door / Front Door Side Weatherstrip

Kia Forte 2019-2024 (BD) Service Manual / Body (Interior and Exterior) / Front Door / Front Door Side Weatherstrip

Repair procedures
Replacement
1.

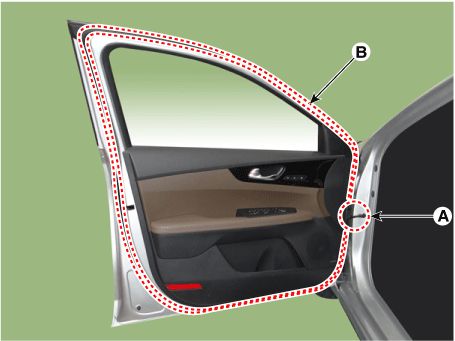

Loosen the front door checker (A) mounting bolt.

Tightening torque :

21.6 - 31.4 N·m (2.2 - 3.2 Kgf·m,15.9 - 23.1 lb·ft)

2.

Detach the clips, then remove the front door side weatherstrip (B).

3.

To install, reverse the removal procedure.



Replace any damaged clips (or pin - type retainers).
