Kia Forte: Crash Pad / Cluster Fascia Panel

Kia Forte 2019-2021 (BD) Service Manual / Body (Interior and Exterior) / Crash Pad / Cluster Fascia Panel

Components and components location
Component Location

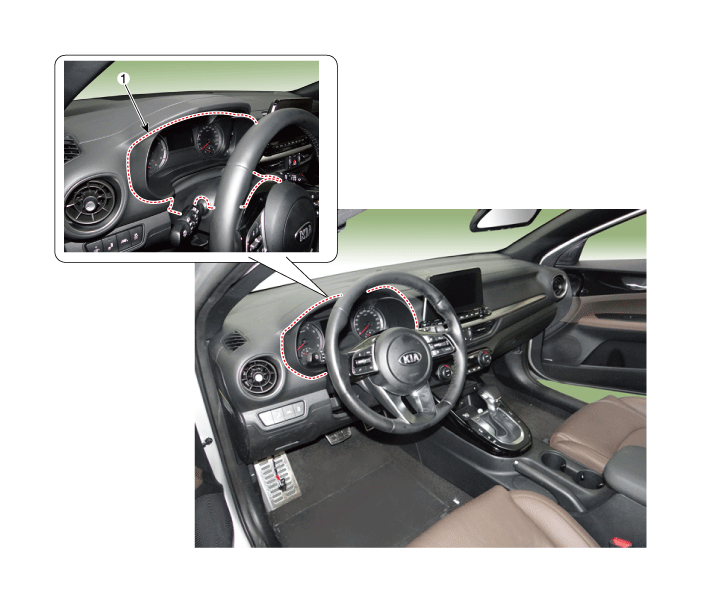

1. Cluster fascia panel


Repair procedures
Replacement


Put on gloves to prevent hand injuries.



When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

Take care not to bend or scratch the trim and panels.

1.

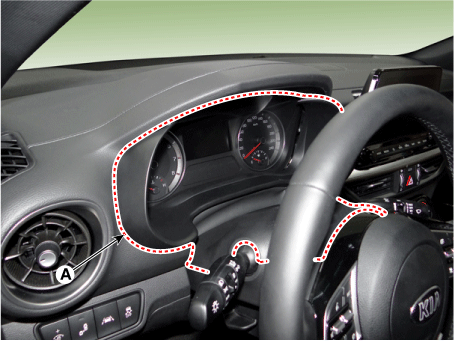

Using a screwdriver or remover, remove the cluster fascia panel (A).

2.

To install, reverse the removal procedure.



Make sure the connector are connected in properly.

Replace any damaged clips (or pin - type retainers).
