Kia Forte: Body (Interior and Exterior) / Crash Pad

Kia Forte 2019-2021 (BD) Service Manual / Body (Interior and Exterior) / Crash Pad

Components and components location

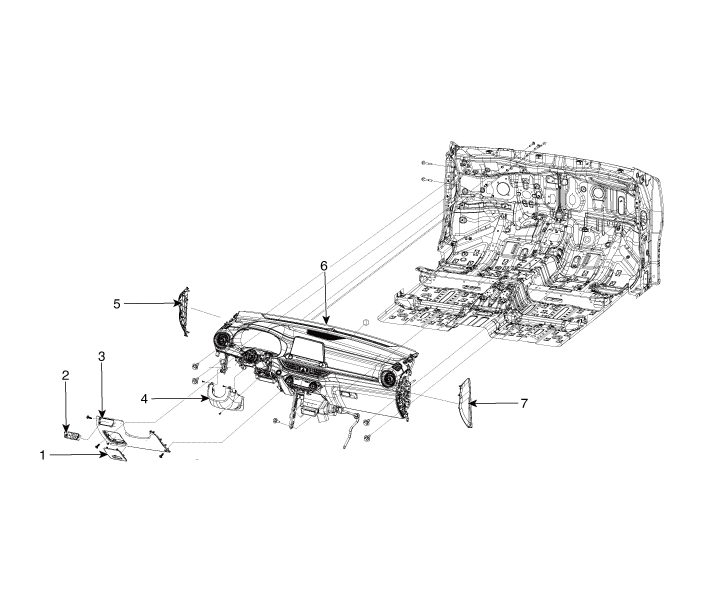

Components (1)

1. Fuse box cover
2. Crash pad side switch
3. Crash pad lower panel
4. Steering column lower shroud cover
5. Crash pad side cover [LH]
6. Crash pad assembly
7. Crash pad side cover [RH]

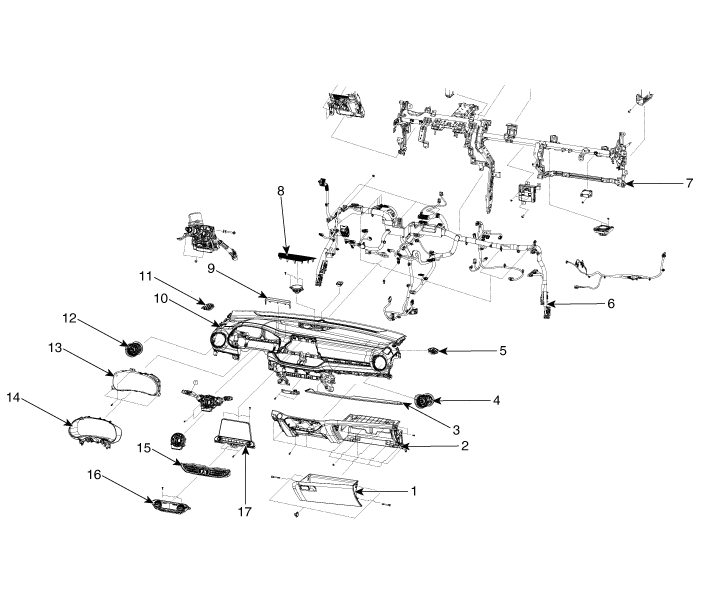

Components (2)

1. Glove box housing
2. Crash pad center lower panel
3. Crash pad center garnish
4. Air vent duct [RH]
5. Side defroster [RH]
6. Main wiring
7. Cowl cross bar assembly
8. Center speaker grill
9. Audio upper panel
10. Main crash pad
11. Side defroster [LH]
12. Air vent duct [LH]
13. Cluster assembly
14. Cluster facia panel
15. Center air vent duct complete
16. Heater controller assembly
17. Audio

Console Armrest
Components and components location Component Location 1. Console armrest Repair procedures Replacement   ...

Cluster Fascia Panel
Components and components location Component Location 1. Cluster fascia panel Repair procedures Replacement & ...
