Kia Forte: Crash Pad / Glove Box

Kia Forte 2019-2023 (BD) Service Manual / Body (Interior and Exterior) / Crash Pad / Glove Box

Components and components location
Component Location

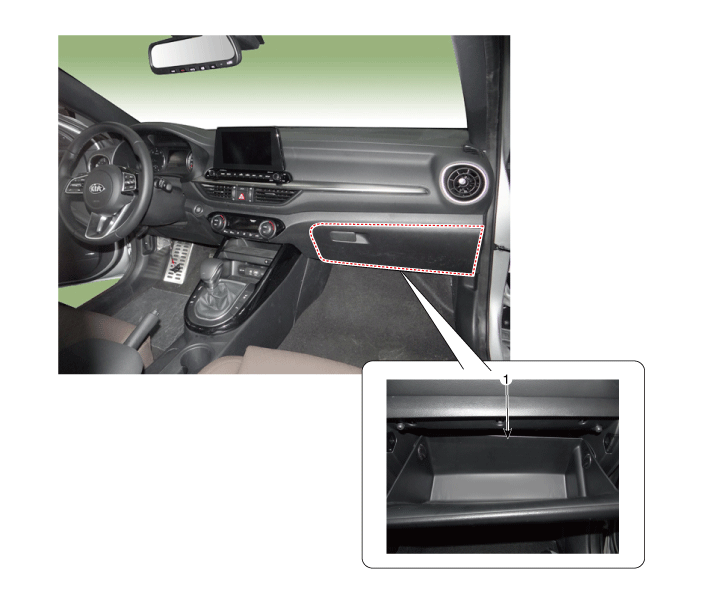

1. Glove box


Repair procedures
Replacement


Put on gloves to prevent hand injuries.



When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.

Take care not to bend or scratch the trim and panels.

1.

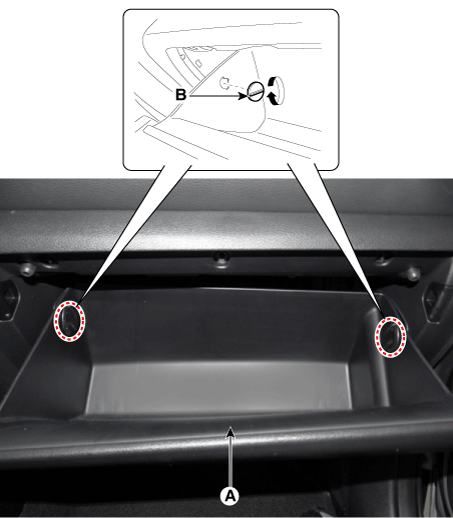

Remove both stoppers (B) from the glove box (A) by turning the stoppers.

2.

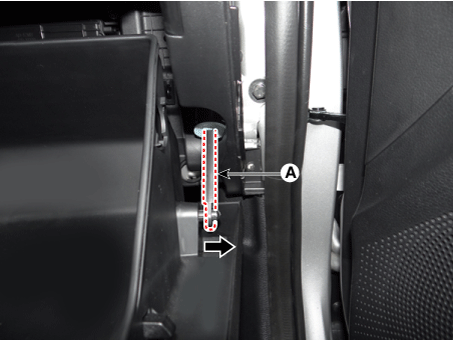

Separate the air damper (A) from the glove box.

3.

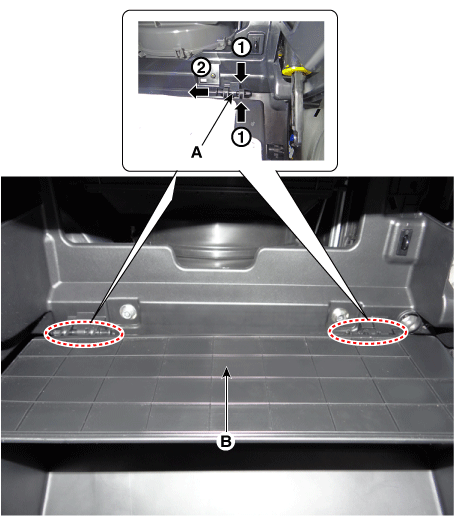

Disconnect the pushpins (A) and then remove the glove box (B).

4.

To install, reverse the removal procedure.



Replace any damaged clips (or pin-type retainers).
