Kia Forte: Crash Pad / Steering Column Shroud Panel

Kia Forte 2019-2021 (BD) Service Manual / Body (Interior and Exterior) / Crash Pad / Steering Column Shroud Panel

Components and components location

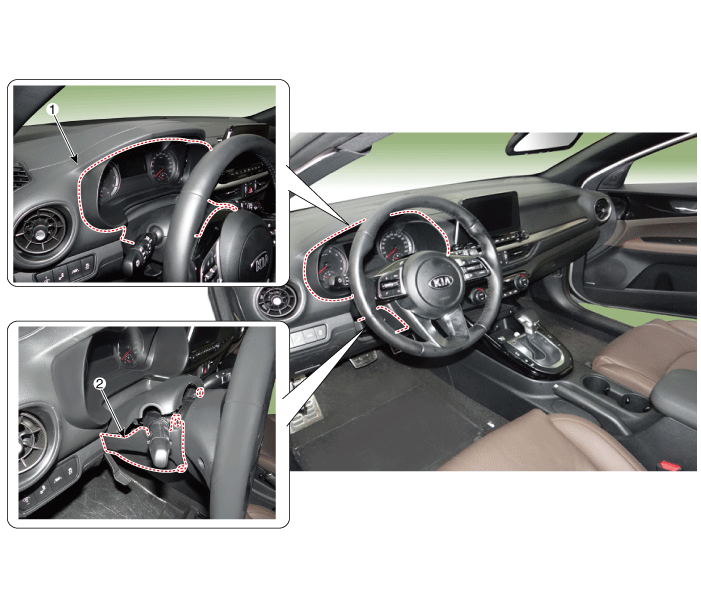

Component Location

1. Steering column shroud lower panel
2. Steering column shroud upper panel

Repair procedures
Replacement

[Steering column shroud lower panel]



Put on gloves to prevent hand injuries.



When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

Take care not to bend or scratch the trim and panels.

1.

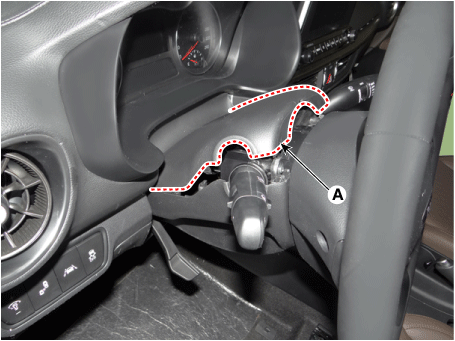

Using a remover, slightly separate the steering column shroud upper panel (A).

2.

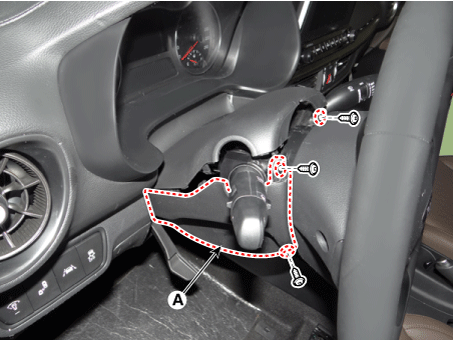

Loosen the mounting screws by turning the steering wheel to the left and right, and remove the steering column shroud lower panel (A).

3.

To install, reverse the removal procedure.



Replace any damaged clips (or pin - type retainers).

[Steering column shroud upper panel]



Put on gloves to prevent hand injuries.



When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

Take care not to bend or scratch the trim and panels.

1.

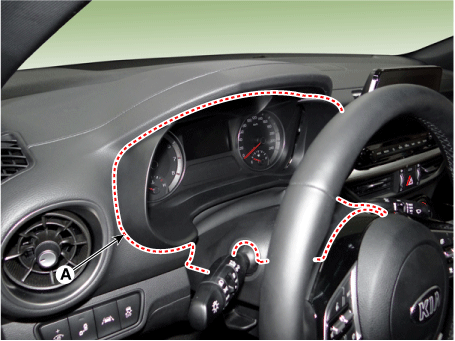

Using a screwdriver or remover, remove the cluster fascia panel (A).

2.

To install, reverse the removal procedure.



Replace any damaged clips (or pin - type retainers).
