Kia Forte: Crash Pad / Crash Pad Side Cover

Kia Forte 2019-2021 (BD) Service Manual / Body (Interior and Exterior) / Crash Pad / Crash Pad Side Cover

Components and components location

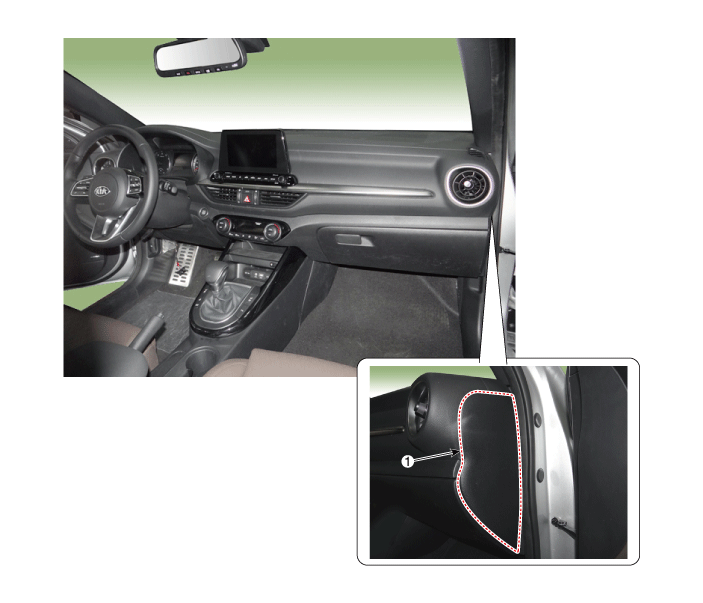

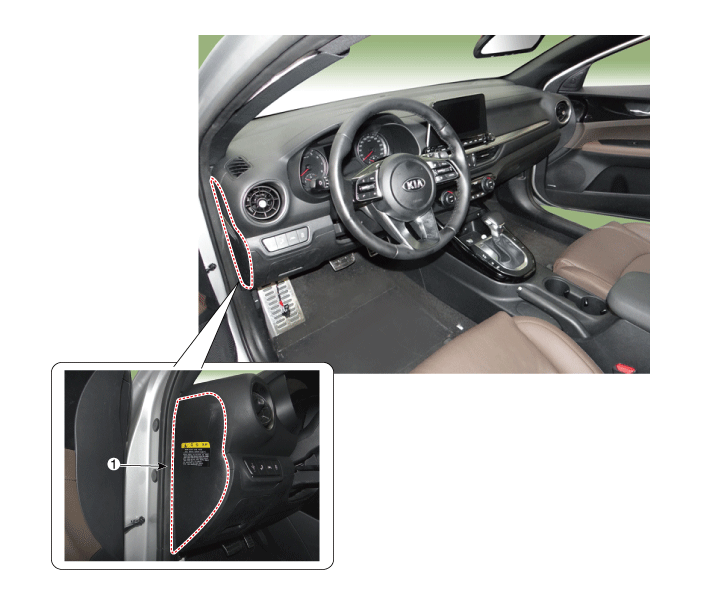

Component Location
[LH]

1. Crash pad side cover [LH]


[RH]

1. Crash pad side cover [RH]


Repair procedures
Replacement


Put on gloves to prevent hand injuries.



When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

Take care not to bend or scratch the trim and panels.

1.

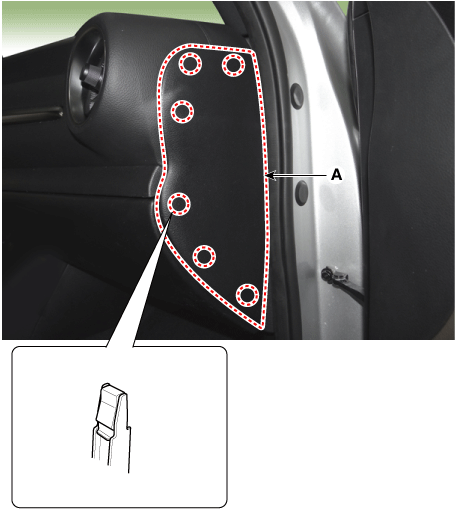

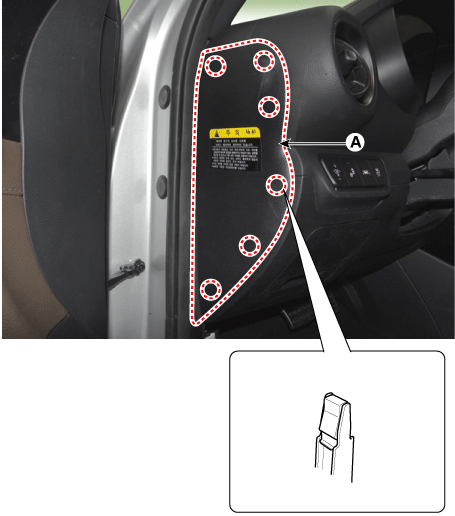

Using a screwdriver or remover, remove the crash pad side cover (A).

[LH]

[RH]

2.

To install, reverse the removal procedure.



Replace any damaged clips (or pin - type retainers).
