Components and components location
Components Location

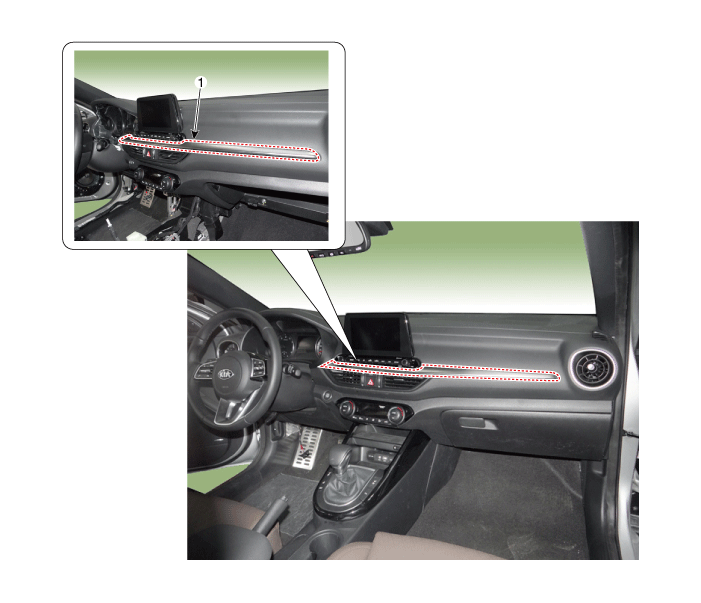

1. Crash pad center garnish assembly

Repair procedures
Replacement


Put on gloves to prevent hand injuries.



When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

Take care not to bend or scratch the trim and panels.

1.

Remove the cluster fascia panel.

(Refer to Crash Pad - "Cluster Fascia Panel")

2.

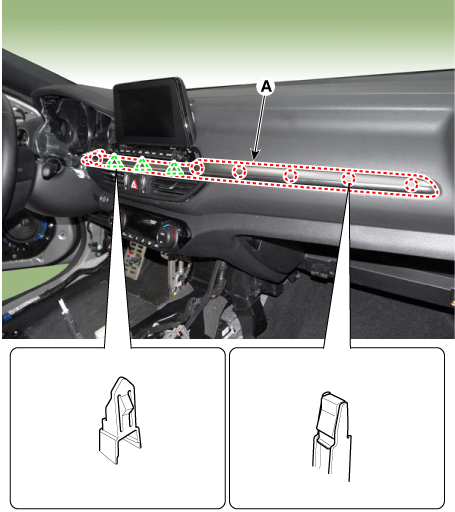

Remove the crash pad center garnish (A).

3.

To install, reverse the removal procedure.



Replace any damaged clips (or pin-type retainers).
