Kia Forte: Floor Console / Console Armrest

Kia Forte 2019-2021 (BD) Service Manual / Body (Interior and Exterior) / Floor Console / Console Armrest

Components and components location
Component Location

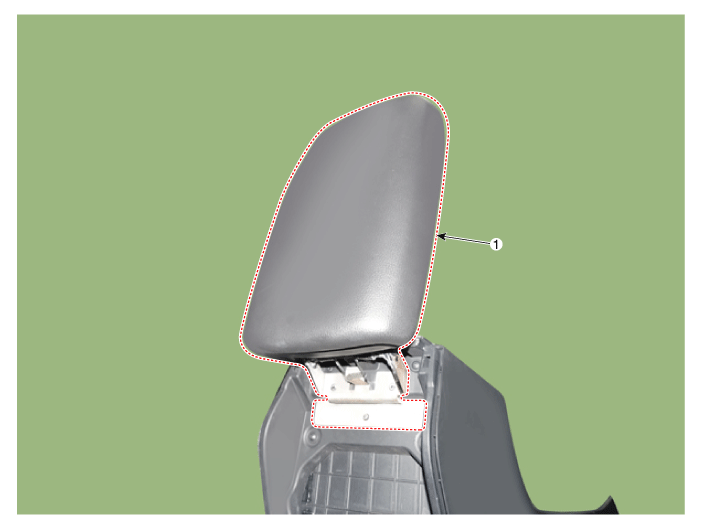

1. Console armrest


Repair procedures
Replacement


Put on gloves to prevent hand injuries.



When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

Take care not to bend or scratch the trim and panels.

1.

Remove the floor console assembly.

(Refer to Floor Console - "Floor Console Assembly")

2.

Remove the rear console cover.

(Refer to Floor Console - "Rear Console Cover")

3.

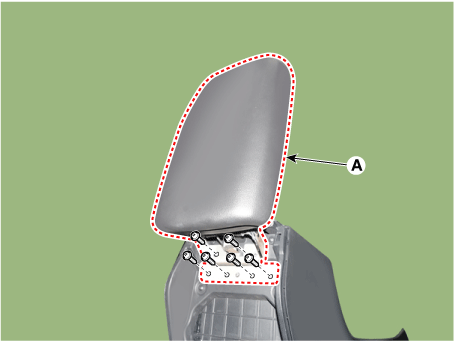

Loosen the mounting screws and remove the console armrest (A).

4.

To install, reverse the removal procedure.



Replace any damaged clips (or pin - type retainers).
