Kia Forte: Floor Console / Rear Console Cover

Kia Forte 2019-2021 (BD) Service Manual / Body (Interior and Exterior) / Floor Console / Rear Console Cover

Components and components location
Component Location

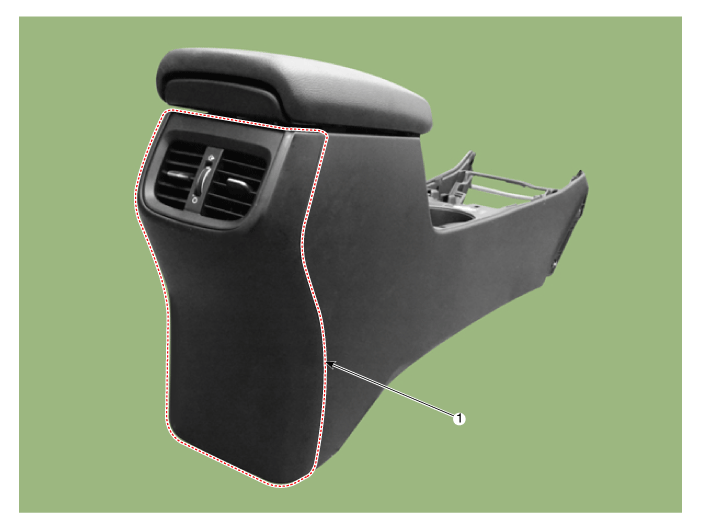

1. Rear console cover


Repair procedures
Replacement


Put on gloves to prevent hand injuries.



When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

Take care not to bend or scratch the trim and panels.

1.

Remove the floor console assembly.

(Refer to Floor Console - "Floor Console Assembly")

2.

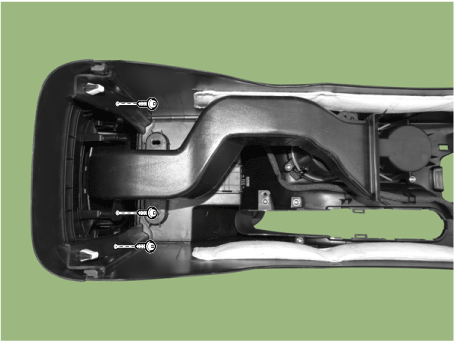

Loosen the rear console mounting screws.

3.

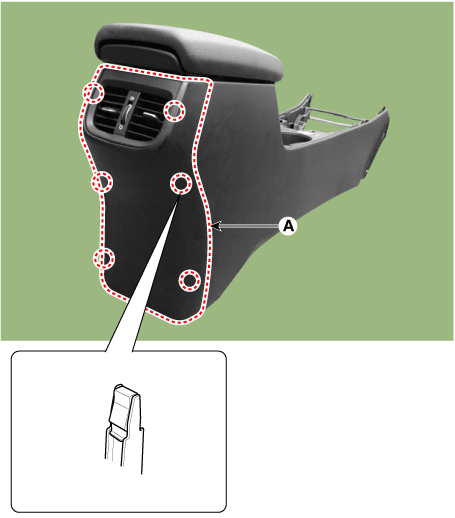

Using a screwdriver or remover, remove the rear console cover (A).

4.

To install, reverse the removal procedure.



Make sure the connector is connected properly.

Replace any damaged clips (or pin - type retainers).
