Kia Forte: Sunroof / Sunroof Glass
Components and components location

Repair procedures
Put on glove to protect your hands.
|
1. |
Close the sunroof glass completely by pressing the sunroof switch.
|
2. |

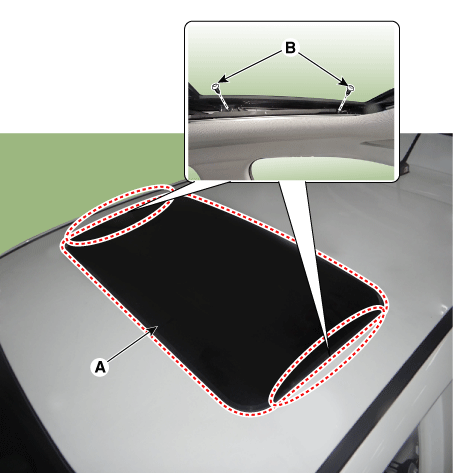

Loosen the mounting screws (B) and remove the sunroof glass (A).
Do not damage the roof panel.
|

|
3. |
To install, reverse the removal procedure.
After replacing the movable glass adjust the alignment if needed.
|
|

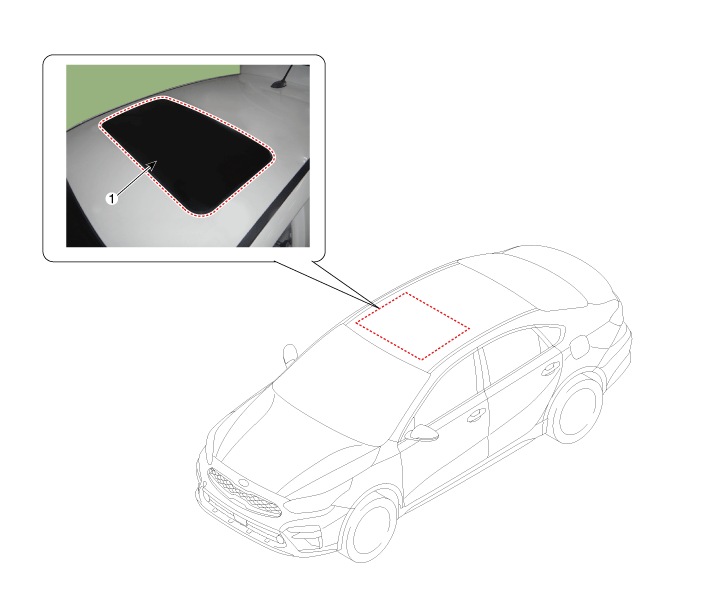

Components and components location
Components
1. Sunroof frame sub assembly
2. Sunroof deflector assembly
3. Sunroof motor assembly
4. Sunroof guide assembly ...
Repair procedures
Replacement
1.
Open the glass fully.
2.
Remove the mounting pins (B), from the frame, and then remove the deflector
(A).
...
