Kia Forte: Sunroof / Sunroof Deflector

Kia Forte 2019-2025 (BD) Service Manual / Body (Interior and Exterior) / Sunroof / Sunroof Deflector

Repair procedures
Replacement
1.

Open the glass fully.

2.

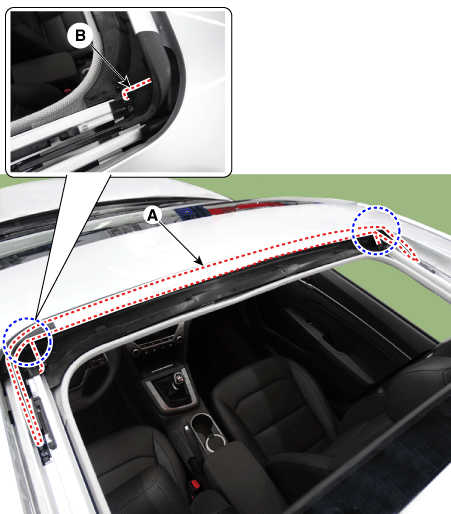

Remove the mounting pins (B), from the frame, and then remove the deflector (A).

3.

To install, reverse the removal procedure.
